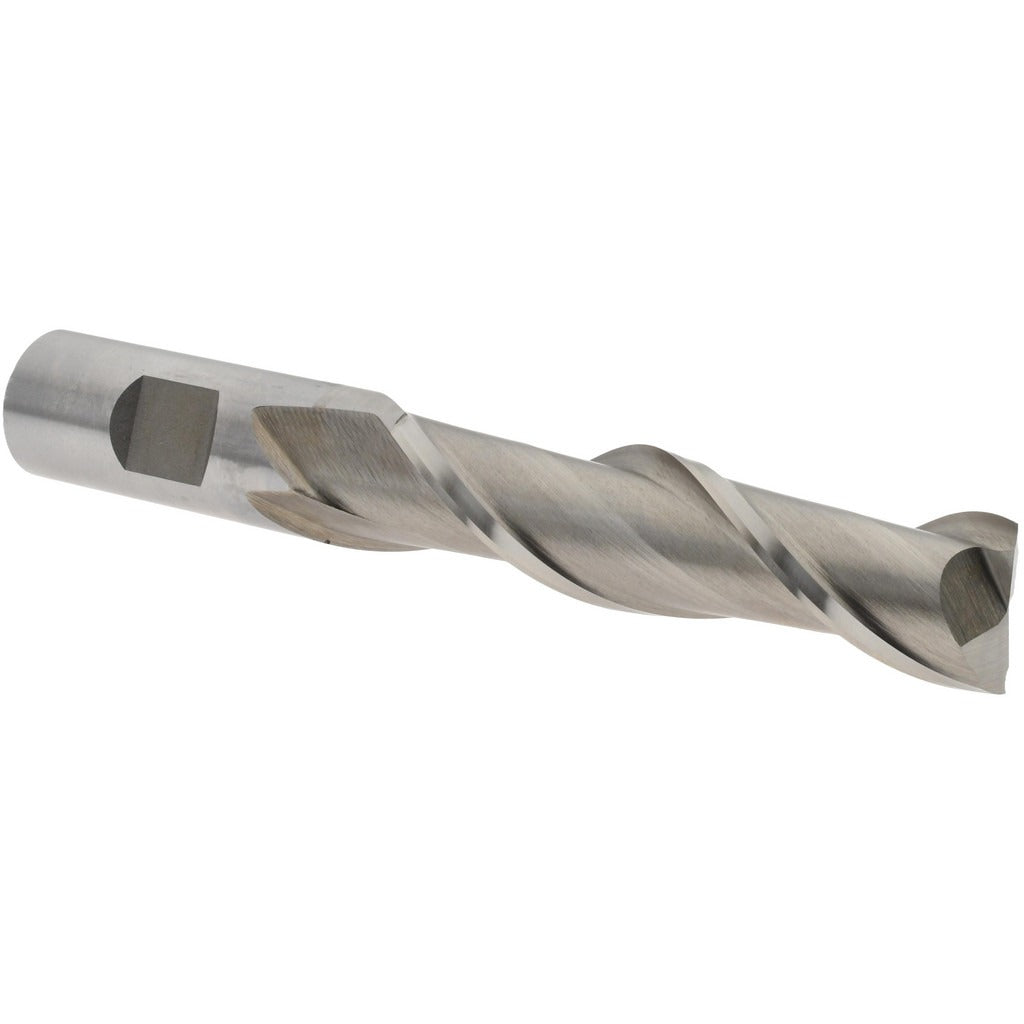

Value Collection 720-1241 Square End Mill 3/4 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-1241 is a single-end square end mill designed for material removal in ferrous and non-ferrous machining applications. It is manufactured from M2 high speed steel with a bright, uncoated finish. The cutter measures 3/4 inch in diameter with a 3-inch length of cut and a 5-1/4-inch overall length. The 30-degree right-hand spiral helix and two-flute geometry provide efficient chip evacuation and good surface finish on a range of workpiece materials. Machinists and toolroom operators install this tool in vertical mills, knee mills, and CNC machining centers.

This end mill is suited for cutting steel, stainless steel, cast iron, and aluminum and other non-ferrous materials in production and maintenance machining environments. The regular-length design fits standard toolholders and collet chucks with a 3/4-inch bore. Center-cutting capability allows it to be used for plunge entry as well as peripheral and slot milling. It is appropriate for job shops, manufacturing facilities, and toolroom use where a general-purpose HSS end mill is specified.

Key Features

• M2 high speed steel construction for durability across a broad range of workpiece materials
• 3/4 inch cutting diameter with 3-inch length of cut for deep slot and pocket work
• 30-degree right-hand helix promotes smooth chip flow and reduced cutting forces
• Center-cutting design allows direct plunge entry without a pre-drilled pilot hole
• Bright, uncoated finish compatible with cutting oils and standard metalworking fluids
• Single-end configuration; 3/4 inch shank diameter fits common collet and end mill holders

Compatibility

Designed as a general-purpose replacement or stock end mill for use in any vertical or CNC milling machine equipped with a 3/4-inch collet, end mill holder, or Weldon-style holder. Compatible with steel, stainless steel, cast iron, and aluminum and non-ferrous workpiece materials as noted in the product specifications.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. The machine spindle must be brought to a full stop and the power source locked out before loading or removing the tool from its holder. Ensure the shank is fully seated and the setscrew or collet nut is torqued according to the toolholder manufacturer's specifications. Inspect the cutting edges for chipping or wear before each use and replace the tool if edge condition is degraded.
