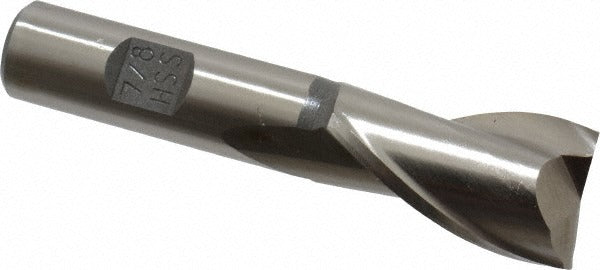

Value Collection 720-1083 Square End Mill 7/8 in Hss

Product Description

The VALUE COLLECTION 720-1083 is a single-end, square-profile end mill designed for material removal in milling operations on machining centers and manual mills. Manufactured from M2 high speed steel with a bright uncoated finish, it runs a 0.875-inch cutting diameter across a 1.5-inch length of cut. The 2-flute geometry and 30-degree right-hand spiral helix provide efficient chip evacuation and a balance between rigidity and cutting clearance. The centercutting design allows plunge entry directly into the workpiece. This tool is installed and operated by machinists and tool-and-die professionals in job shop and production environments.

This end mill is suited for milling steel, stainless steel, cast iron, and aluminum and non-ferrous materials. With a 0.625-inch shank diameter and a 3.625-inch overall length, it fits standard ER and collet-style toolholders commonly found on vertical and horizontal machining centers as well as Bridgeport-style knee mills. The regular-length configuration keeps deflection low during side milling, slotting, and profiling operations at moderate depths of cut.

Key Features

• M2 high speed steel construction for toughness across a wide range of workpiece materials
• 0.875-inch cutting diameter with 1.5-inch length of cut for standard-depth milling passes
• 2-flute, 30-degree right-hand spiral helix for efficient chip flow and reduced heat buildup
• Centercutting geometry allows direct plunge entry without a pre-drilled hole
• Bright uncoated finish suitable for use with or without cutting fluid
• Single-end design; right-hand cut and right-hand flute direction

Compatibility

Designed as a standard fractional-inch single-end square end mill with a 0.625-inch shank, compatible with collet chucks, ER-style holders, and end mill holders sized for that shank diameter on vertical or horizontal milling machines.

Installation Notes

Installation is performed by a qualified machinist. Ensure the machine spindle is fully stopped and the tool holder is clean and free of chips before seating the shank. Tighten the collet or set screw to the toolholder manufacturer's specified torque using the appropriate wrench. Verify runout with a dial indicator before initiating a cut, and confirm that feed rate and spindle speed are appropriate for the workpiece material and depth of cut.
