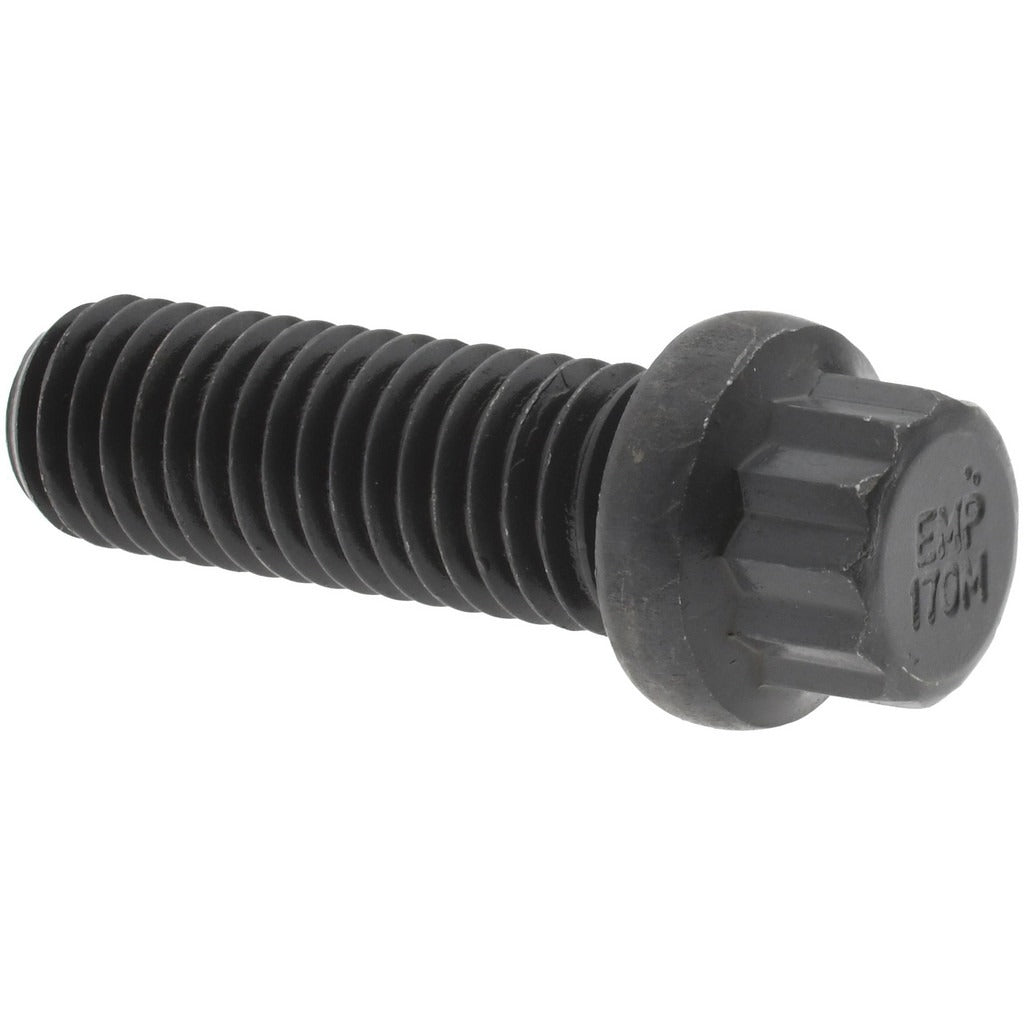

Value Collection 711098MSC Flange Bolt 1/2-13 Unc 1-1/2 in

Product Description

The VALUE COLLECTION 711098MSC is a smooth flange bolt designed for high-strength fastening applications requiring a low-profile, load-distributing flange head. Manufactured from alloy steel rated at 170M PSI, this bolt meets ASTM A574 standards for mechanical fasteners. The 1/2-13 UNC thread is fully threaded along a 1-1/2 inch length under head, and the 12-point drive socket head allows high torque application with standard tooling. The smooth, uncoated flange measures 3/4 inch in diameter, distributing clamping load across a wider surface area without requiring a separate washer.

This flange bolt is suited for structural, mechanical, and equipment assembly applications where high tensile strength and reliable clamping are required. Its fully threaded shank and UNC thread form make it compatible with standard 1/2-13 nuts and threaded assemblies across industrial, HVAC equipment mounting, and mechanical system fabrication scenarios. The bright, uncoated finish is appropriate for indoor or protected environments. Minimum order quantity is 5 pieces.

Key Features

• Alloy steel construction rated to 170M PSI tensile strength
• Meets ASTM A574 standard for socket head cap screws and flange bolts
• Fully threaded 1/2-13 UNC shank, 1-1/2 inches length under head
• Smooth flange diameter of 3/4 inch (0.735 to 0.750 inches) distributes clamping load without a washer
• 12-point drive accepts 1/2-inch socket for high-torque installation
• Bright, uncoated finish for use in clean, dry environments

Compatibility

Designed for use with standard 1/2-13 UNC threaded nuts and tapped holes in inch-measurement assemblies requiring ASTM A574 alloy steel fasteners.

Installation Notes

Install using a 1/2-inch 12-point socket or bit driver. De-energize and lock out any equipment before fastening components under power or pressure. Torque to values specified by the equipment manufacturer or applicable structural standard for 1/2-13 alloy steel fasteners. The uncoated finish offers no corrosion protection, so avoid installation in wet or chemically exposed environments without additional protection.
