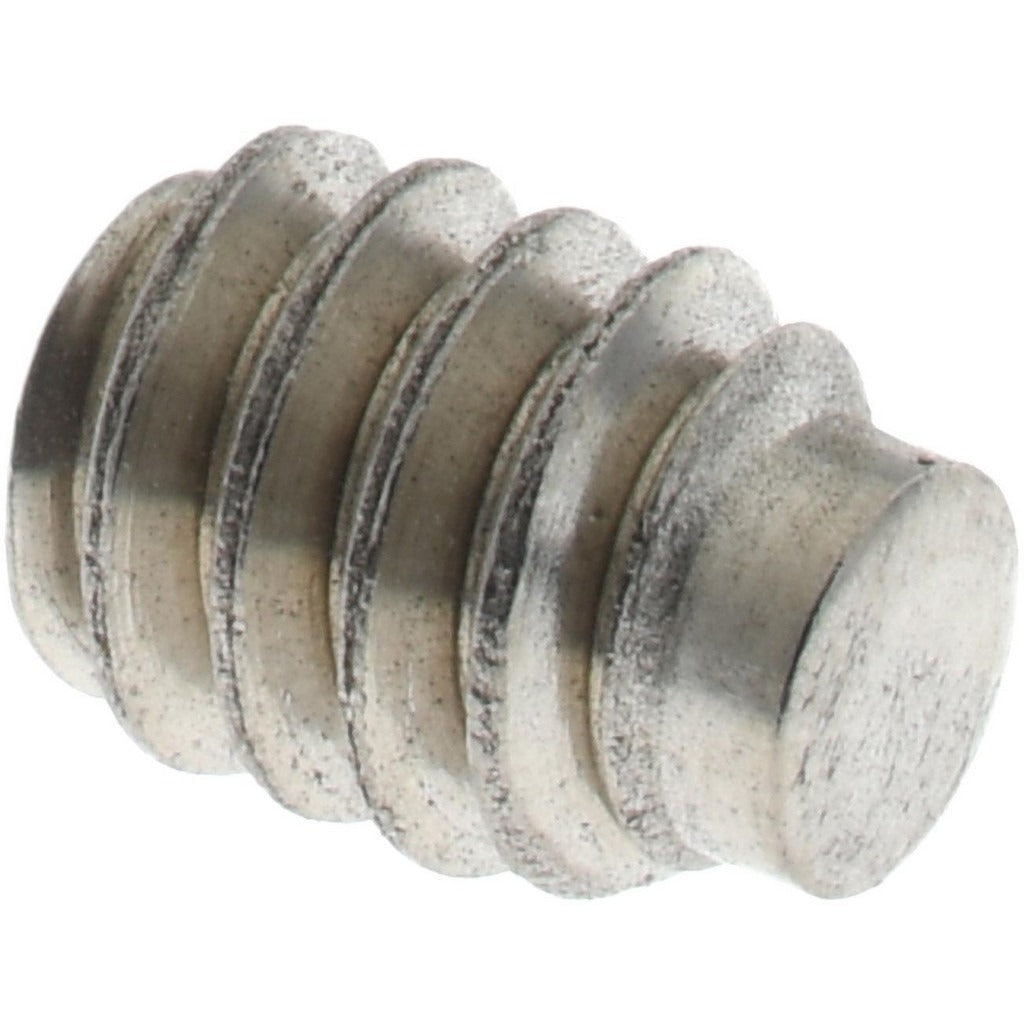

Value Collection 706305PR Set Screw 10-24 X 1/4 in Half Dog

Product Description

The VALUE COLLECTION 706305PR is a half dog point set screw designed for precision positioning and locking applications in mechanical assemblies. Sized at 10-24 thread with a 1/4 inch overall length, this screw is manufactured from austenitic Grade A2 stainless steel, providing solid corrosion resistance in moderate-exposure environments. The half dog point extends partially from the tip, allowing the fastener to locate into a mating hole or groove while still permitting axial movement if needed. Driven with a 3/32 inch hex key, it meets ASME/ANSI B18.3 and ASTM F880 standards. Machinists, millwrights, and maintenance technicians commonly install these in shaft collars, hubs, and similar mechanical components.

This set screw suits general industrial and light commercial maintenance applications where a UNC-threaded, headless fastener is required. The half dog point configuration is well suited to applications that need a positive locating point without fully pinning the mating component. Typical installation scenarios include securing shaft collars, pulleys, gears, and mechanical stops on rotating shafts. The A2 stainless steel construction makes it a practical choice in environments with incidental moisture exposure or where carbon steel fasteners are not acceptable.

Key Features

• Half dog point design provides positive shaft location and allows limited axial movement in the mating component
• 10-24 UNC thread with 1/4 inch overall length suits compact mechanical assemblies
• Austenitic Grade A2 stainless steel construction offers corrosion resistance in moderate-exposure environments
• 3/32 inch internal hex drive for use with standard hex keys or Allen wrenches
• Meets ASME/ANSI B18.3 and ASTM F880 fastener standards
• Sold individually with a minimum order quantity of 100 pieces

Compatibility

Designed as a standard UNC headless set screw for use in any threaded hole or component accepting a 10-24 thread. Verify mating thread standard and hex drive clearance before installation.

Installation Notes

Installation is performed by machinists, millwrights, or maintenance technicians using a 3/32 inch hex key. De-energize and lock out any rotating equipment before installing or adjusting set screws in shaft-mounted components. Do not exceed the rated seating torque for the thread size and material grade as specified in applicable machinery documentation. Inspect the mating shaft or groove for burrs or damage that could prevent full seating of the dog point.
