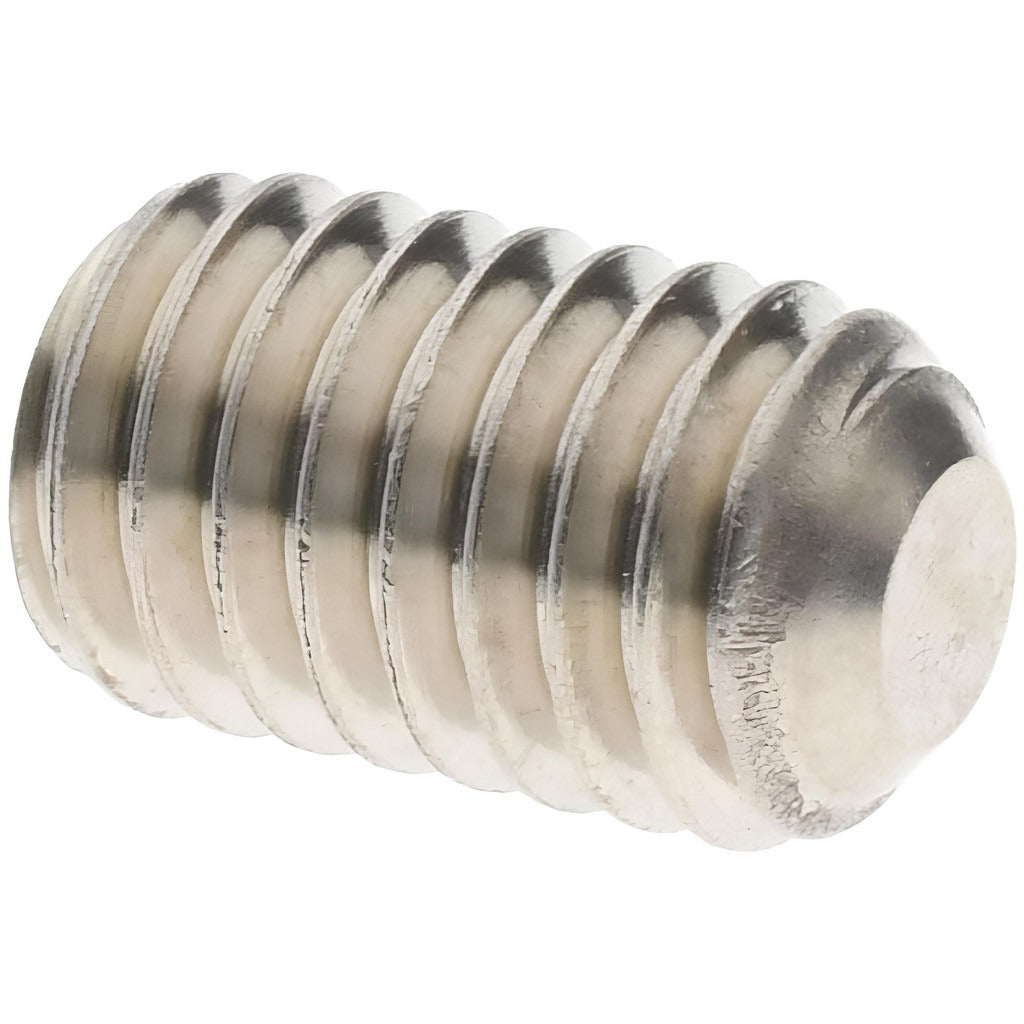

Value Collection 703337PR Set Screw 10-32 X 5/16 in Flat Point Ss

Product Description

The VALUE COLLECTION 703337PR is a 10-32 x 5/16-inch flat point set screw manufactured from Austenitic Grade A2 stainless steel. This headless fastener seats flush within a tapped bore and applies clamping force through a flat point contact surface, making it well suited for securing collars, pulleys, and mechanical components onto shafts without protruding hardware. Drive is a 3/32-inch internal hex socket. The A2 stainless material provides corrosion resistance in moderate service environments. Dimensioned to ASME/ANSI B18.3 and ASTM F880 standards, this screw meets the thread and geometric requirements expected in precision assembly work. Licensed trades and maintenance technicians handling mechanical and electrical equipment rely on this grade of fastener for its dimensional consistency and standardized socket drive.

The 703337PR is applicable in light industrial, commercial, and mechanical maintenance settings where a UNF 10-32 threaded bore is present. Common uses include set positions on shaft-mounted components such as hubs, sprockets, knobs, and couplings. The flat point profile distributes force across the shaft surface without marring, making it appropriate for softer shaft materials or applications where repeated adjustment is anticipated. Supplied in a minimum order quantity of 100 pieces per package, this part is suited for MRO stocking and production-line fastener bins.

Key Features

• 10-32 UNF thread for precise engagement in standard tapped bores
• Flat point profile distributes clamping load without indenting shaft surface
• Austenitic Grade A2 stainless steel for corrosion resistance in moderate environments
• 3/32-inch internal hex drive compatible with standard hex key sets
• Conforms to ASME/ANSI B18.3 and ASTM F880 dimensional standards
• Headless design sits fully below mating surface when installed

Compatibility

Designed as a standard 10-32 UNF flat point set screw for use in any application requiring an ASME/ANSI B18.3-compliant headless socket set screw with a 3/32-inch hex drive.

Installation Notes

Installation is typically performed by a millwright, maintenance technician, or mechanical contractor using a calibrated 3/32-inch hex key or T-handle driver. Ensure the tapped bore is clean and free of debris before threading the screw by hand to avoid cross-threading. De-energize and lock out any rotating or powered equipment before positioning or tightening set screws on shaft-mounted components, per applicable LOTO procedures. Do not exceed the fastener manufacturer torque specifications for the 10-32 thread size as published in ASME standards.
