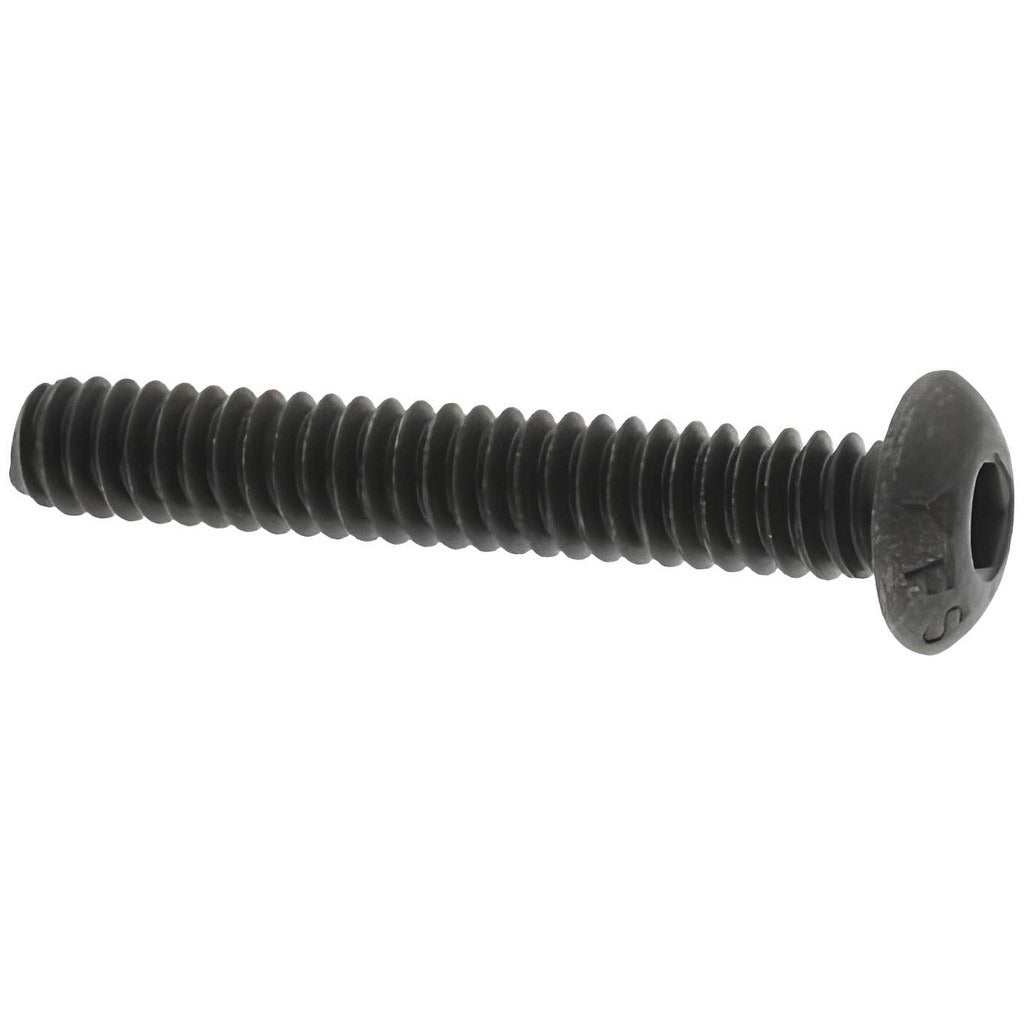

Value Collection 701099PR Button Socket Cap Screw 10-24

Product Description

The VALUE COLLECTION 701099PR is a button socket cap screw designed for applications requiring a low-profile head and high clamping strength. The screw features a 10-24 UNC thread with a 1-1/4-inch length under the head, driven by a 1/8-inch hex socket. Constructed from alloy steel with a black oxide finish, it delivers a hardness rating of 36-43 HRC and meets ANSI/ASME B18.3 and ASTM F835 standards. The fully threaded shank and Class 3A thread fit ensure consistent engagement and reliable clamping across a wide range of assemblies.

This screw is suited for mechanical, industrial, and light structural applications where a flush or near-flush fastener head is required. The button head profile reduces snagging and allows clearance in tight assemblies. Black oxide coating provides mild corrosion resistance and a clean appearance, making it a common choice in machine building, enclosure fabrication, and equipment assembly environments. It is typically installed by machinists, millwrights, or maintenance technicians working with steel or aluminum components.

Key Features

• Low-profile button head reduces snagging and fits tight clearance assemblies
• 1/8-inch hex socket drive for precise torque application
• Alloy steel construction with 36-43 HRC hardness for high-strength fastening
• Black oxide finish provides mild corrosion resistance and consistent appearance
• Fully threaded shank with 10-24 UNC Class 3A fit for reliable thread engagement
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as an OEM-style replacement or standard-specification button socket cap screw for use in assemblies requiring a 10-24 UNC thread and 1-1/4-inch grip length.

Installation Notes

Install using a calibrated 1/8-inch hex key or socket driver. Ensure mating threads are clean and free of debris before installation. Right-hand thread direction requires clockwise rotation to tighten. Follow applicable torque specifications from ANSI/ASME B18.3 guidelines for alloy steel fasteners at the applicable hardness class.
