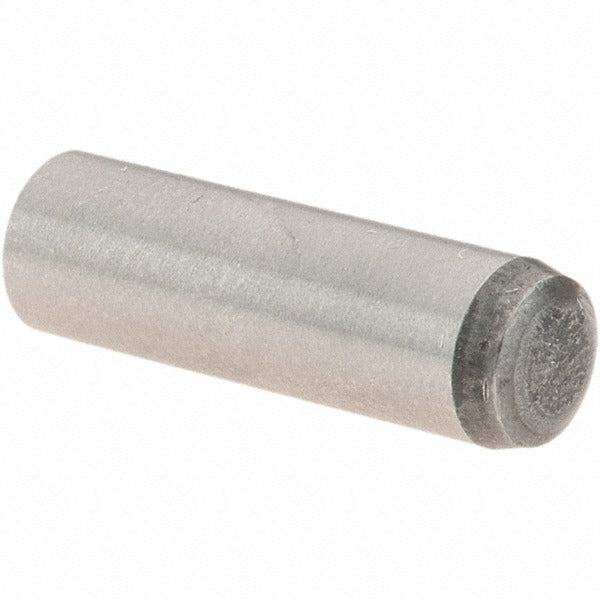

Value Collection 70017 Precision Dowel Pin 6mm X 20mm 25 Pack

Product Description

The VALUE COLLECTION 70017 is a precision dowel pin engineered for accurate component alignment and positioning in mechanical assemblies. Manufactured from Grade 8 alloy steel with a bright finish, this pin measures 6 mm in diameter and 20 mm in overall length with rounded ends. It conforms to DIN 6325 and ISO 8734 standards, making it a reliable choice for applications where tight tolerances and consistent fit are required. Machinists, tool-and-die technicians, and maintenance mechanics install these pins in jigs, fixtures, dies, and precision machine components where repeatable part location is critical.

This dowel pin is suited for light to medium-duty industrial and manufacturing applications requiring precise bore-to-bore or part-to-plate alignment. The rounded end profile aids smooth insertion into reamed or precision-bored holes. Each package contains 25 pins, making it practical for production environments, repair shops, and tool rooms that need on-hand inventory of a standard metric size. The DIN 6325 and ISO 8734 compliance ensures dimensional interchangeability with components manufactured to those same standards.

Key Features

• Grade 8 alloy steel construction for strength and wear resistance
• Bright finish for corrosion resistance in typical indoor service environments
• Rounded ends for easier alignment and insertion during assembly
• Conforms to DIN 6325 and ISO 8734 dimensional standards
• Packaged in quantities of 25 for production and maintenance use

Compatibility

Designed as a standard metric precision dowel pin for use in any mechanical assembly, fixture, jig, or die that specifies a 6 mm diameter, 20 mm length dowel conforming to DIN 6325 or ISO 8734.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed holes by machinists or maintenance mechanics using an arbor press or dead-blow mallet. Holes should be reamed to the appropriate tolerance class for the intended fit — interference, transition, or slip — before installation. Always de-burr mating holes and clean components before pressing pins into place to avoid galling or dimensional distortion. Follow applicable facility and equipment safety lockout procedures before disassembling or reassembling machinery.
