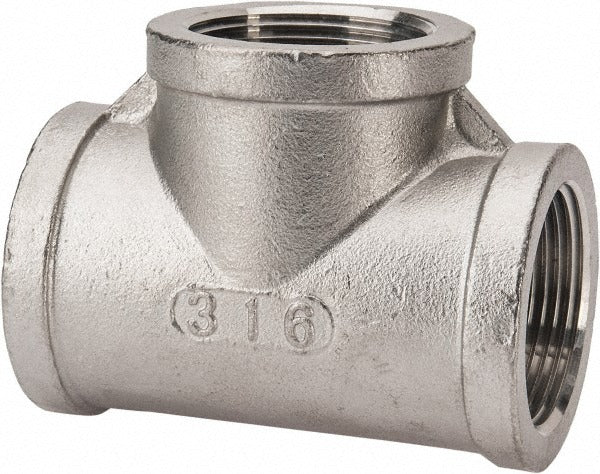

Value Collection 6TB11/4 Pipe Tee 1-1/4 in 316 Ss Threaded 150 Psi

Product Description

The VALUE COLLECTION 6TB11/4 is a 1-1/4 inch threaded pipe tee manufactured from 316 stainless steel and rated for service up to 150 psi. This Schedule 40 fitting uses a male NPT run inlet and two female NPT branch and outlet connections, making it suited for splitting or combining flow in a piped system. The 316 stainless steel alloy provides enhanced resistance to corrosion in harsh environments including chemical exposure and saltwater-adjacent applications. Plumbers, pipefitters, and mechanical contractors install this fitting in fluid distribution, process piping, and industrial service lines where corrosion resistance and threaded assembly are required.

This tee is appropriate for use in residential and commercial plumbing systems, industrial process lines, and marine or coastal installations where 316 stainless steel is specified over standard 304 grades. The threaded MNPT x FNPT x FNPT configuration allows direct installation into existing NPT-threaded pipe runs without welding or special tooling beyond a pipe wrench and appropriate thread sealant. Schedule 40 wall thickness is consistent with standard service pressure requirements in these applications.

Key Features

• 316 stainless steel construction for superior corrosion resistance in aggressive service environments
• 150 psi pressure rating suitable for general plumbing and process piping service
• MNPT x FNPT x FNPT end connections for straightforward installation into standard NPT-threaded systems
• Schedule 40 wall thickness meets standard dimensional requirements for 1-1/4 inch pipe fittings
• Threaded assembly requires no welding, simplifying installation and field replacement

Compatibility

Designed as an OEM-style replacement or new-installation threaded pipe tee compatible with standard 1-1/4 inch NPT pipe systems in plumbing, industrial, and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or ASME B31.3 for process piping. Isolate and depressurize the line and drain any fluid before disassembling or installing the fitting. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly, and tighten to snug using a pipe wrench without over-torquing the stainless steel threads. Inspect the connection for leaks after restoring system pressure.
