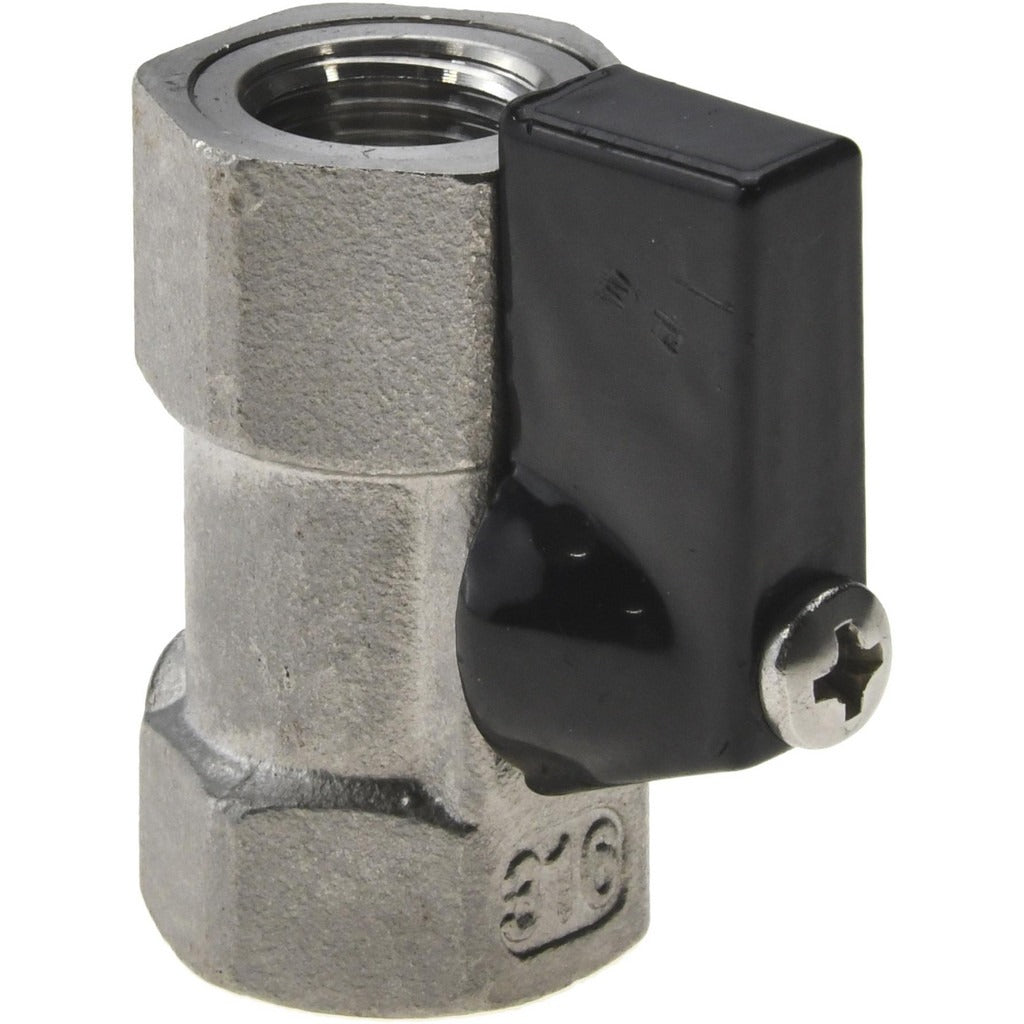

Value Collection 6Q01H08 Miniature Ball Valve 1/4 in Full Port

Product Description

The VALUE COLLECTION 6Q01H08 is a miniature manual ball valve designed for inline, two-way flow control in small-bore piping systems. Built from 316 stainless steel in a one-piece body, this valve handles demanding fluid and gas applications where corrosion resistance and reliable shutoff are required. It accepts 1/4 inch FNPT connections on both ends and features a full-port bore to minimize pressure drop across the valve. A wedge-style handle provides positive open-close indication at a glance. The seat is PTFE and the seals are Viton, giving this valve broad chemical compatibility. Rated at 1,000 WOG and 150 WSP, it suits a wide range of industrial, HVAC, and plumbing service conditions. Licensed tradespeople and maintenance technicians are the primary installers.

This valve is appropriate for residential and light commercial applications where a compact, corrosion-resistant shutoff is needed in tight spaces. Common installation scenarios include instrument lines, refrigerant-circuit sample ports, compressed-air branch lines, chemical-feed systems, and small hydronic loops. Its miniature footprint makes it a practical choice wherever a standard-body valve is too large. The FNPT x FNPT end configuration threads directly into female-ported equipment, manifolds, or standard pipe fittings without adapters.

Key Features

• 316 stainless steel one-piece body for corrosion resistance in aggressive service environments
• Full-port bore minimizes flow restriction and pressure drop
• PTFE seat and Viton seals provide broad chemical compatibility
• 1,000 WOG and 150 WSP pressure ratings suit a wide range of service conditions
• Wedge handle gives clear visual open-close indication
• Lead-free construction meets applicable plumbing code requirements for potable water service

Compatibility

Designed as an OEM-style replacement or new-installation valve for 1/4 inch FNPT-ported piping systems requiring full-port, two-way manual shutoff service.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician in accordance with applicable IPC or IFGC requirements. Depressurize and drain or purge the line completely before removing any existing valve or threading in the new valve. Apply thread sealant appropriate for the service fluid to the male pipe threads mating to this valve. Do not use the handle as a wrench or apply excessive force to seat the valve body into the fitting.
