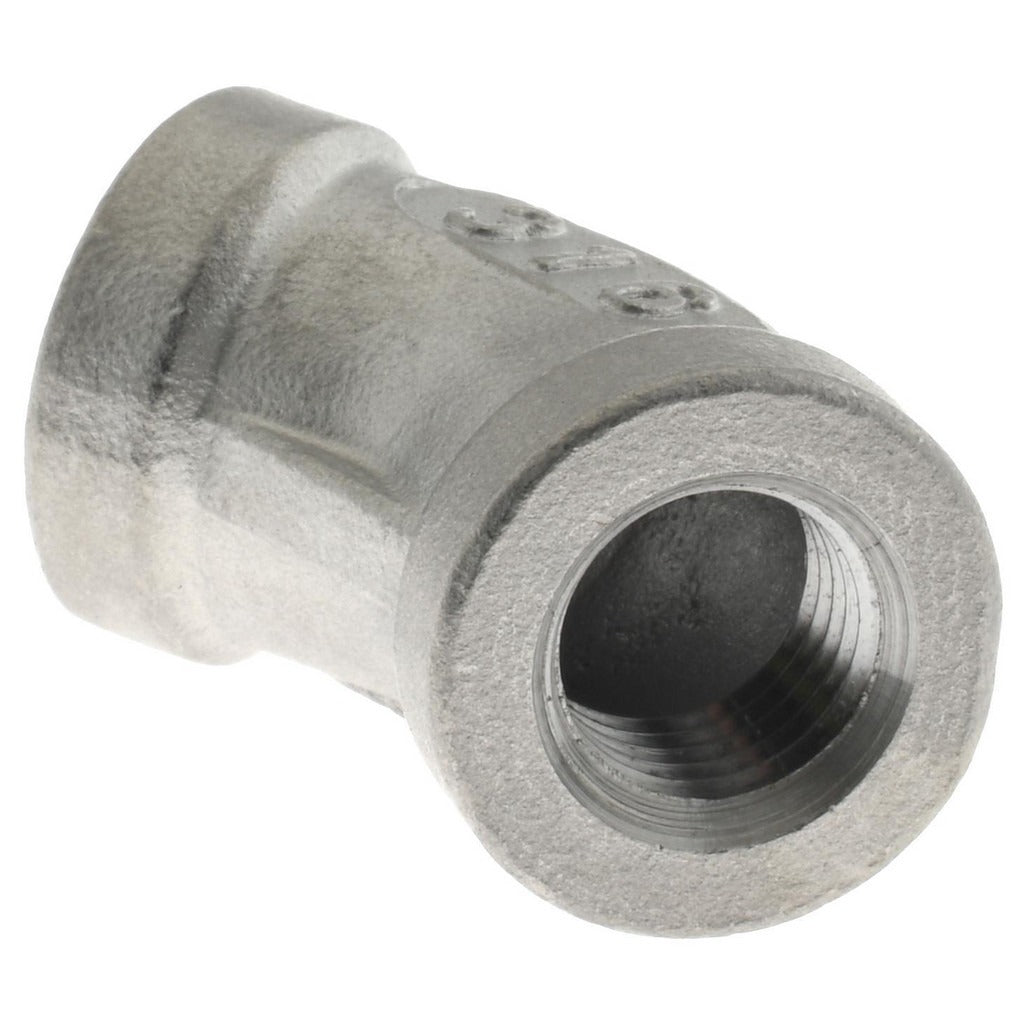

Value Collection 6LB451/4 45 Deg Pipe Elbow 316 Ss

Product Description

The VALUE COLLECTION 6LB451/4 is a 45-degree pipe elbow fitting designed for use in threaded piping systems that require corrosion-resistant materials. Constructed from 316 stainless steel, this fitting connects two threaded pipe sections at a 45-degree angle, redirecting flow with minimal pressure loss. It features female NPT (FNPT) connections on both ends and carries a pressure rating of 150 psi at Schedule 40. The 1/4-inch fitting size makes it suited for smaller-diameter runs in chemical, process, or fluid-handling systems. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers of this type of fitting.

This 45-degree elbow is appropriate for residential, commercial, and light industrial plumbing and process piping applications where corrosion resistance is a priority. The 316 stainless steel construction offers improved resistance to chlorides and acidic environments compared to standard 304 stainless, making it a common choice for food service, marine adjacent installations, and chemical-handling lines. The FNPT x FNPT thread pattern accepts standard NPT-threaded pipe or nipples on both ends.

Key Features

• 316 stainless steel construction for enhanced corrosion resistance in aggressive environments
• 45-degree elbow geometry for moderate direction changes in threaded piping runs
• FNPT x FNPT connections for compatibility with standard NPT-threaded pipe and fittings
• 150 psi pressure rating at Schedule 40
• 1/4-inch fitting size suited for small-diameter piping systems

Compatibility

Designed as a threaded 45-degree elbow replacement or new-installation fitting for 1/4-inch NPT piping systems using Schedule 40 pipe.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and ASME B16.3 standards for malleable iron and equivalent threaded fittings. Shut off and depressurize the system completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male NPT threads before assembly, and do not overtighten, as stainless-to-stainless galling can occur. Inspect threads for damage before installation.
