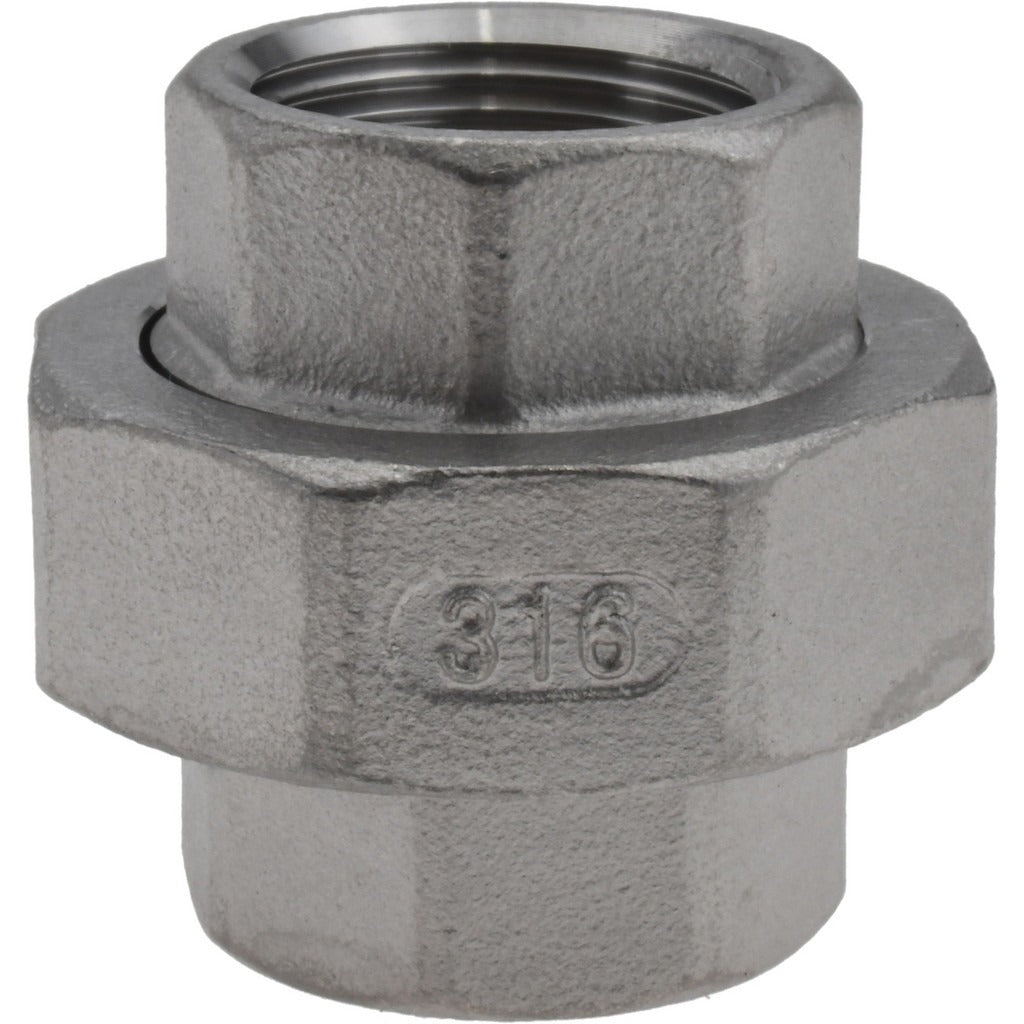

Value Collection 6CU-CFF3/4 Pipe Union 3/4 in 316 Ss

Product Description

The VALUE COLLECTION 6CU-CFF3/4 is a 3/4-inch threaded pipe union constructed from 316 stainless steel. Pipe unions allow piping systems to be disconnected and reconnected without cutting or disturbing adjacent sections of pipe. This fitting uses female NPT (FNPT) connections on both ends and carries a pressure rating of 150 psi. The 316 stainless steel construction provides strong resistance to corrosion and is well suited for demanding fluid-handling applications. Plumbers, pipefitters, and mechanical contractors install this type of union in process, industrial, and commercial piping systems where stainless material is specified.

This union is appropriate for use in residential, commercial, and light industrial piping applications where a threaded, easily serviceable connection is required. The FNPT x FNPT end configuration makes it compatible with standard NPT-threaded pipe and fittings. 316 stainless steel is commonly specified in applications involving corrosive media, sanitary systems, marine environments, or chemical exposure. It fits standard 3/4-inch nominal pipe size piping runs.

Key Features

• 316 stainless steel construction for strong corrosion resistance
• 3/4-inch fitting size with FNPT x FNPT end connections
• Threaded union design allows piping to be disconnected without cutting
• 150 psi pressure rating suitable for a range of fluid-handling applications
• Compact form factor fits tight installation spaces

Compatibility

Designed as an OEM-style replacement or direct installation fitting for standard 3/4-inch NPT threaded piping systems in commercial and industrial plumbing applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable local plumbing codes and ASME B1.20.1 NPT thread standards. Shut off and depressurize the piping system fully before removing or installing any union fitting. Apply an appropriate thread sealant or PTFE tape to the male NPT threads of the mating pipe before making up the connection. Do not over-tighten threaded connections, as this can damage the fitting threads or distort the union seat.
