Value Collection 6CU-CFF1/8 Pipe Union 1/8 in 316 Ss

Product Description

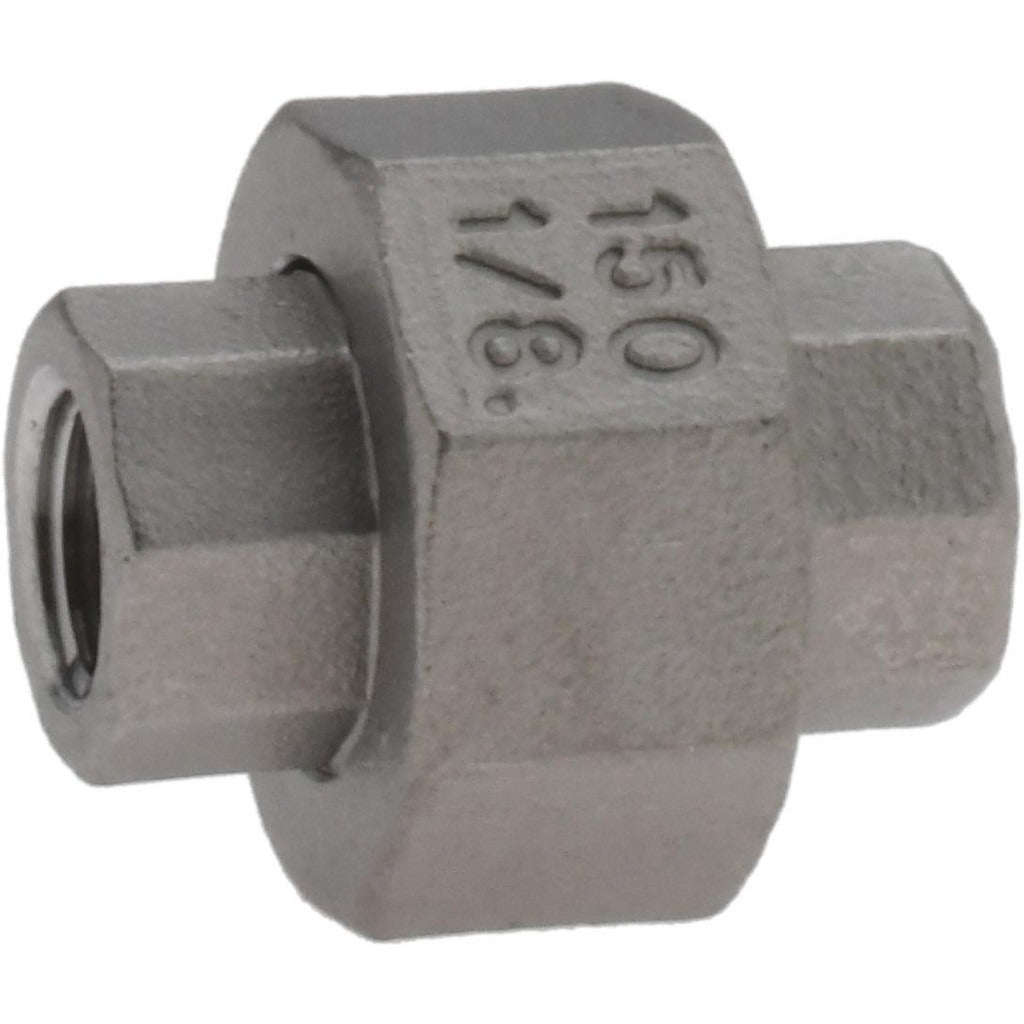

The VALUE COLLECTION 6CU-CFF1/8 is a 1/8 inch threaded pipe union manufactured from 316 stainless steel. It connects two sections of pipe or tubing in a system where the line must be periodically broken for service or replacement without disturbing the rest of the run. Both ends feature female NPT (FNPT) threads, and the union is rated to 150 psi. The 316 stainless steel construction provides strong resistance to corrosion, making it suitable for demanding fluid and gas handling applications. Plumbers, pipefitters, and industrial maintenance technicians are the typical installers.

This union fits into 1/8 inch threaded piping systems found in light industrial, commercial, and process plumbing applications. It is well suited for use with water, steam, chemicals, and other media where corrosion resistance is required. The FNPT x FNPT end configuration makes it compatible with standard NPT male-threaded pipe nipples and fittings. Its compact size suits tight spaces where a breakable connection is needed for routine maintenance access.

Key Features

• 316 stainless steel construction for high corrosion resistance in wet, chemical, or saline environments
• FNPT x FNPT threaded ends accept standard NPT male-threaded pipe and fittings
• 150 psi pressure rating for light to moderate service applications
• 1/8 inch fitting size for small-diameter piping runs
• Breakable union design allows pipe disconnection without cutting or disturbing adjacent fittings

Compatibility

Designed as an OEM-style threaded union for 1/8 inch NPT piping systems requiring a 316 stainless steel, FNPT x FNPT breakable connection point.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable codes such as the IPC or IFGC. Depressurize and drain the line completely before removing or installing any union. Apply an appropriate thread sealant or PTFE tape to the male NPT threads being engaged. Hand-tighten first, then wrench-tighten to achieve a leak-free connection without overtightening the union nut, which can distort the seating faces.
