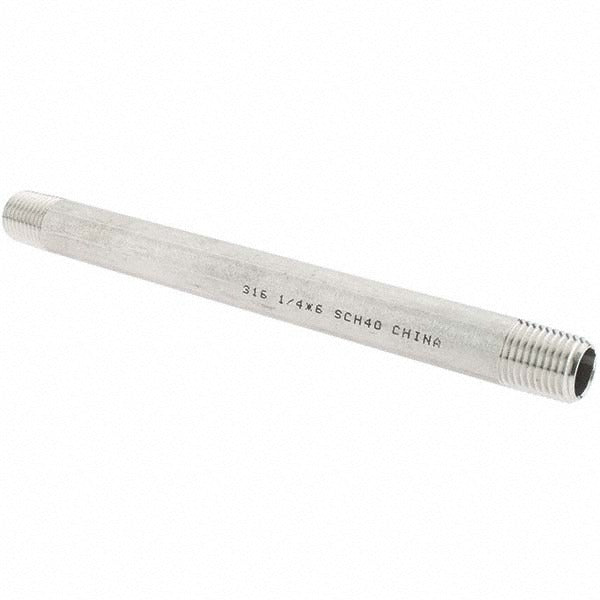

Value Collection 6BN1/4*6 Ss Pipe Nipple 1/4 in Grade 316

Product Description

The VALUE COLLECTION 6BN1/4*6 is a welded stainless steel pipe nipple sized for 1/4-inch pipe, manufactured to Grade 316/316L and Schedule 40 wall thickness. This short-run threaded fitting is used to connect or extend sections of pipe in fluid and gas distribution systems. The 316/316L dual-certified material grade provides corrosion resistance in demanding environments including exposure to chlorides, acids, and saltwater. Plumbers, pipefitters, and industrial maintenance technicians commonly install this type of nipple in process piping, marine applications, and chemical handling lines where carbon steel would be inadequate.

This pipe nipple is suited for residential and commercial plumbing as well as light industrial process piping. Schedule 40 wall thickness makes it appropriate for standard-pressure service lines. The 1/4-inch pipe size fits smaller-diameter branch lines, instrument connections, and gauge ports commonly found in HVAC, plumbing, and fluid-handling systems. It installs using standard NPT threading and is compatible with fittings, valves, and couplings of the same pipe size and thread standard.

Key Features

• Grade 316/316L dual-certified stainless steel for superior corrosion resistance
• Welded construction to Schedule 40 wall thickness for standard-pressure service
• 1/4-inch NPT thread size for use with standard fittings, valves, and couplings
• Suitable for chloride, acid, and saltwater-exposed environments
• Compact fitting for branch lines, gauge ports, and instrument connections

Compatibility

Designed as a standard-replacement pipe nipple for 1/4-inch NPT threaded piping systems using Schedule 40 fittings and components.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following applicable IPC and ASME B31 piping codes. Isolate and depressurize the line and drain any residual fluid before removing or installing threaded fittings. Apply appropriate thread sealant or PTFE tape to NPT threads before assembly. Do not overtighten threaded connections, as stainless steel fittings are susceptible to galling.
