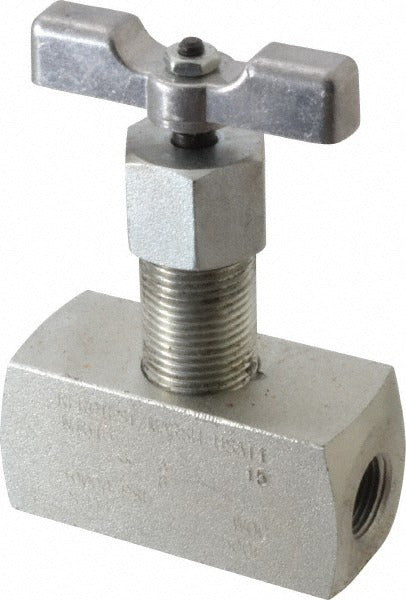

Value Collection 67550010 Straight Needle Valve 3/8 Npt

Product Description

The VALUE COLLECTION 67550010 is a straight-pattern needle valve designed for high-pressure fluid and gas control in industrial and mechanical systems. Built with a 1045 alloy steel body and bonnet, paired with a 416 stainless steel stem and a hard seat design, this valve handles demanding service conditions. It accepts 3/8-inch NPT connections and is rated to a maximum working pressure of 10,000 psi. The overall length is 1.66 inches. Licensed plumbers, pipefitters, and mechanical contractors install this type of valve in hydraulic lines, instrumentation manifolds, and high-pressure test systems.

This valve is suited for applications where precise flow shutoff and control are required across a wide temperature range. It is rated for service from -20 degrees F to 500 degrees F, making it appropriate for both cold and elevated-temperature process lines. Typical installations include hydraulic systems, high-pressure process piping, and instrumentation connections in commercial and industrial settings. The cast aluminum handle provides positive manual control under operating conditions.

Key Features

• Hard seat configuration for positive shutoff in high-pressure service
• 10,000 psi maximum working pressure rating
• Body and bonnet machined from 1045 alloy steel; stem is 416 stainless steel
• 3/8-inch NPT end connections on both ports
• Wide temperature range: -20 degrees F to 500 degrees F
• Cast aluminum handle for direct manual operation

Compatibility

Designed as a standard-pattern replacement or new-installation needle valve for 3/8-inch NPT high-pressure piping systems in industrial, hydraulic, and instrumentation applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable codes, including ASME B31.1 or B31.3 as appropriate to the system. Depressurize and isolate the line fully before removing or installing any valve. Apply thread sealant rated for the working pressure and fluid service to NPT threads before assembly. Do not exceed the published maximum working pressure or temperature ratings for the valve.
