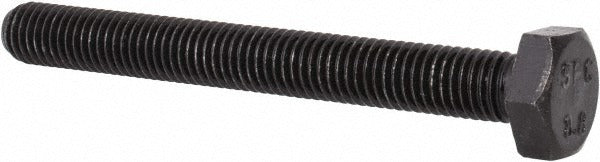

Value Collection 643103PR Hex Cap Screw M10x1.5 X 90mm Grade 8.8

Product Description

The VALUE COLLECTION 643103PR is a metric hex head cap screw designed for general industrial and mechanical fastening applications. Built to Grade 8.8 steel specifications, this fully threaded fastener delivers reliable clamping strength across a range of structural and assembly uses. The M10 x 1.50 thread profile runs the full length under the head, which measures 90 mm. A 17 mm hex drive is used for installation with a standard wrench or socket. Uncoated bright finish means no protective coating is applied, making it suitable for environments where coating thickness or appearance is not a concern. This screw conforms to DIN 933 and ISO 4017 standards.

This fastener is suited for metric-standard mechanical assemblies, industrial equipment, and structural hardware applications where a fully threaded hex cap screw is specified. Typical users include maintenance technicians, millwrights, mechanical assemblers, and fabrication shops requiring a dependable DIN 933 or ISO 4017 compliant fastener. The fully threaded design allows engagement along the entire shank, making it appropriate for through-hole applications or where maximum thread engagement is required.

Key Features

• M10 x 1.50 metric thread, fully threaded along the 90 mm length under head
• Grade 8.8 steel construction for reliable tensile and yield strength in standard fastening applications
• 17 mm hex drive compatible with standard metric wrenches and sockets
• Bright uncoated finish — no added coating thickness to affect fit or clearance
• Conforms to DIN 933 and ISO 4017 dimensional and material standards
• UNSPSC Code 31161501 for procurement and catalog compatibility

Compatibility

Designed as a standard metric replacement or service fastener for any application calling for a DIN 933 or ISO 4017 fully threaded hex head cap screw in M10 x 1.50 x 90 mm with Grade 8.8 steel.

Installation Notes

Installation is performed with a 17 mm open-end, box-end, or socket wrench. Ensure mating threads are clean and free of debris before installation. Always confirm thread pitch compatibility before driving the fastener — M10 x 1.50 is a standard metric coarse thread, but verify the receiving component is not tapped for a fine-pitch variant. Do not exceed appropriate torque values for Grade 8.8 M10 fasteners as specified by the equipment manufacturer or applicable engineering standards.
