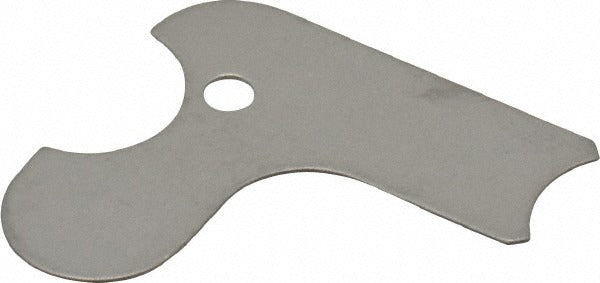

Value Collection 615-4817 Radius Gage 17/64 Inch

Product Description

The VALUE COLLECTION 615-4817 is a chrome-coated steel radius gage sized to measure a 17/64-inch radius. Radius gages are used to check concave and convex radii on machined, cast, or fabricated parts during inspection and layout work. The chrome coating resists corrosion and helps maintain a clean reference surface for accurate readings. This gage is a single-leaf tool suited to shops, maintenance departments, and field technicians who need a quick go/no-go check on small-radius profiles without a full set.

This radius gage is appropriate for general metalworking, fabrication, and maintenance applications where a 17/64-inch radius must be verified or scribed. It is commonly used by machinists, tool-and-die workers, and maintenance technicians working on components where radius conformance is part of a quality or fit check. The compact, lightweight form makes it easy to keep in a toolbox or apron pocket for on-the-spot use.

Key Features

• 17/64-inch radius for precise concave and convex profile checks
• Chrome-coated finish resists corrosion and wear
• Steel construction provides durability and dimensional stability
• Lightweight at 0.003 pounds for easy handling and portability
• Single-leaf design for quick, direct comparison gauging

Compatibility

Designed as a general-purpose radius gage for use wherever a 17/64-inch radius reference is required in metalworking, fabrication, or maintenance inspection tasks.

Installation Notes

No installation is required for this inspection tool. Clean the part surface and gage leaf before use to ensure accurate contact and avoid false readings. Handle the gage leaf carefully to prevent bending, which would compromise measurement accuracy. Store in a dry location to preserve the chrome coating and prevent corrosion.
