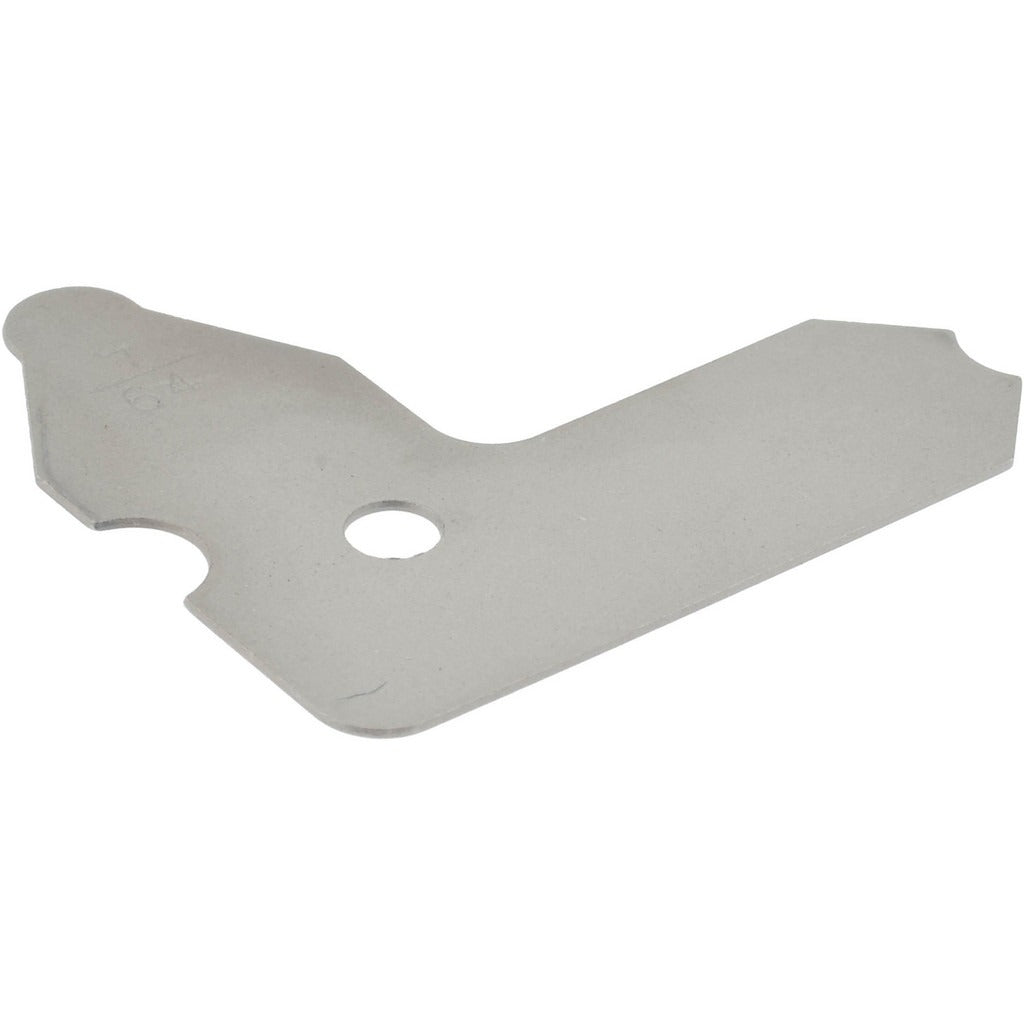

Value Collection 615-4807 Radius Gage 7/64 Inch

Product Description

The VALUE COLLECTION 615-4807 is a chrome-coated steel radius gage used to measure and verify concave and convex radii on machined parts, fittings, pipe ends, and fabricated components. At 7/64 inch, this leaf-style gage gives technicians and machinists a quick go/no-go reference for checking inside and outside radii without need for calipers or CMM equipment. The chrome coating resists corrosion and wear during regular shop use. At approximately 0.003 pounds, it is light enough to carry in a tool pouch for field or bench work.

This radius gage is suited for use in plumbing, HVAC, and general mechanical trades wherever fillet radii, pipe saddles, or machined shoulder radii must be verified during fabrication, inspection, or quality control. It is equally at home on a machine shop bench or in a field service kit. Tradespersons checking fitting seating surfaces, valve body radii, or weld prep profiles will find this a practical single-size reference tool.

Key Features

• Chrome-coated steel construction resists corrosion during continuous shop or field use
• 7/64 inch radius measurement for precise go/no-go verification of concave and convex profiles
• Lightweight at 0.003 pounds for easy inclusion in a tool pouch or inspection kit
• Single-leaf design provides straightforward visual and tactile fitment check

Compatibility

Designed as a standard single-size radius gage suitable for general mechanical, plumbing, and HVAC fabrication and inspection applications requiring a 7/64 inch radius reference.

Installation Notes

No installation is required for this inspection tool. Clean the contact surface of the gage and the workpiece before use to ensure accurate fitment. Handle with care to avoid bending the leaf, which would compromise measurement accuracy. Store away from abrasive materials to preserve the chrome coating and gage geometry.
