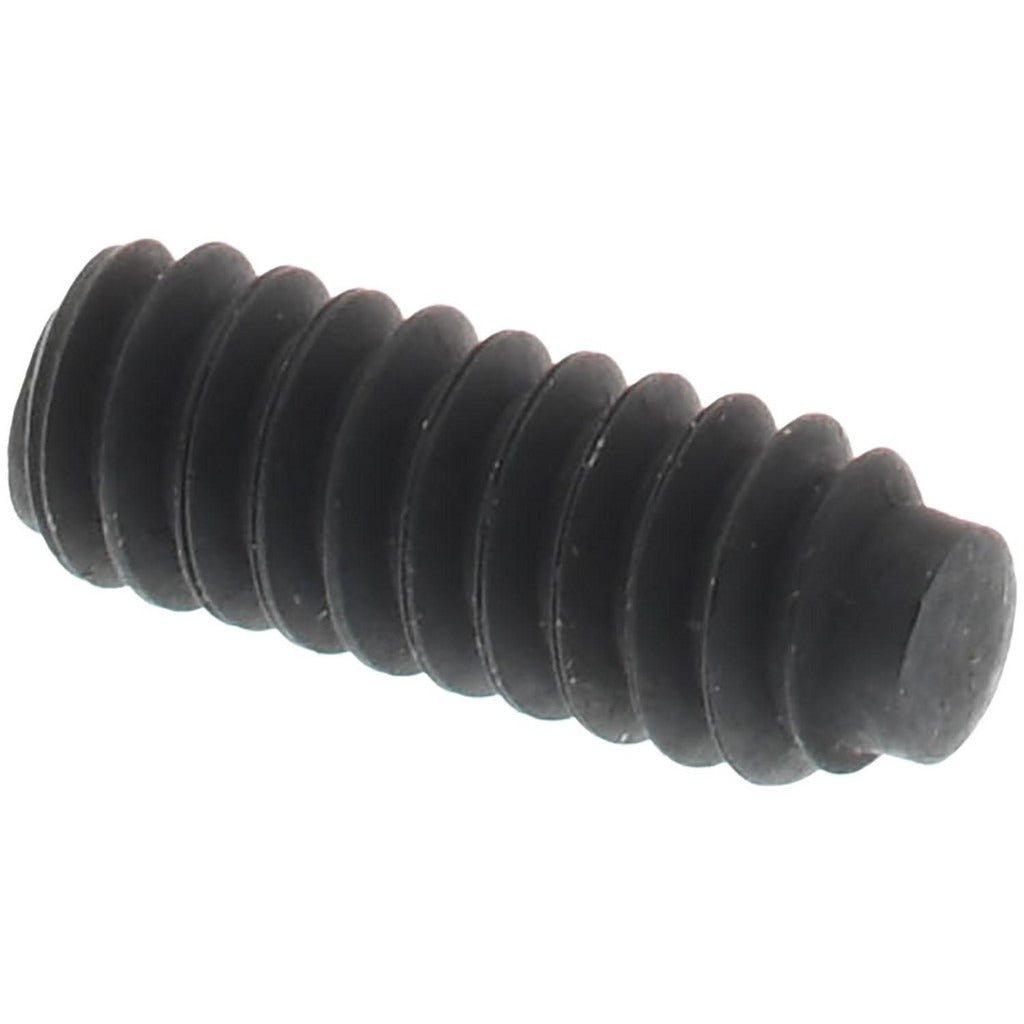

Value Collection 606125PR Set Screw 6-32 X 3/8 in Half Dog

Product Description

The VALUE COLLECTION 606125PR is a Grade 8 alloy steel set screw designed for secure, non-projecting fastening applications. It features a half dog point for reliable engagement with mating holes or grooves, and is driven with a 1/16-inch hex key. Sized at 6-32 UNC thread with an overall length of 3/8 inches, this fastener meets ASME/ANSI B18.3 and ASTM F912 standards. Machinists, maintenance technicians, and assemblers use this type of fastener to lock collars, hubs, pulleys, and similar components onto shafts without a protruding head.

This set screw is suited for light-duty mechanical assemblies requiring a flush or recessed fastening solution. The half dog point style positions and holds mating parts by seating into a drilled recess or flat, making it a common choice in precision machinery, shaft collars, and adjustment mechanisms. It is appropriate for both production and maintenance environments where UNC thread fasteners are specified.

Key Features

• Half dog point engages mating holes or grooves for positive location and holding power
• Grade 8 alloy steel construction provides high tensile and torsional strength
• 6-32 UNC thread for compatibility with standard unified coarse thread tapped holes
• 3/8-inch overall length in a headless, flush-mount form factor
• 1/16-inch hex drive for use with standard hex keys or Allen wrenches
• Meets ASME/ANSI B18.3 and ASTM F912 dimensional and material standards

Compatibility

Designed as a standard UNC set screw for use in any application specifying a 6-32 x 3/8-inch half dog point fastener per ASME/ANSI B18.3 and ASTM F912.

Installation Notes

Installation is performed with a 1/16-inch hex key. Ensure the mating tapped hole is clean and free of debris before driving the screw. De-energize and lock out any machinery before servicing components secured by set screws. Do not exceed the torque capacity of the thread by over-driving, as Grade 8 alloy set screws in fine-pitch light threads can damage the tapped hole if over-tightened.
