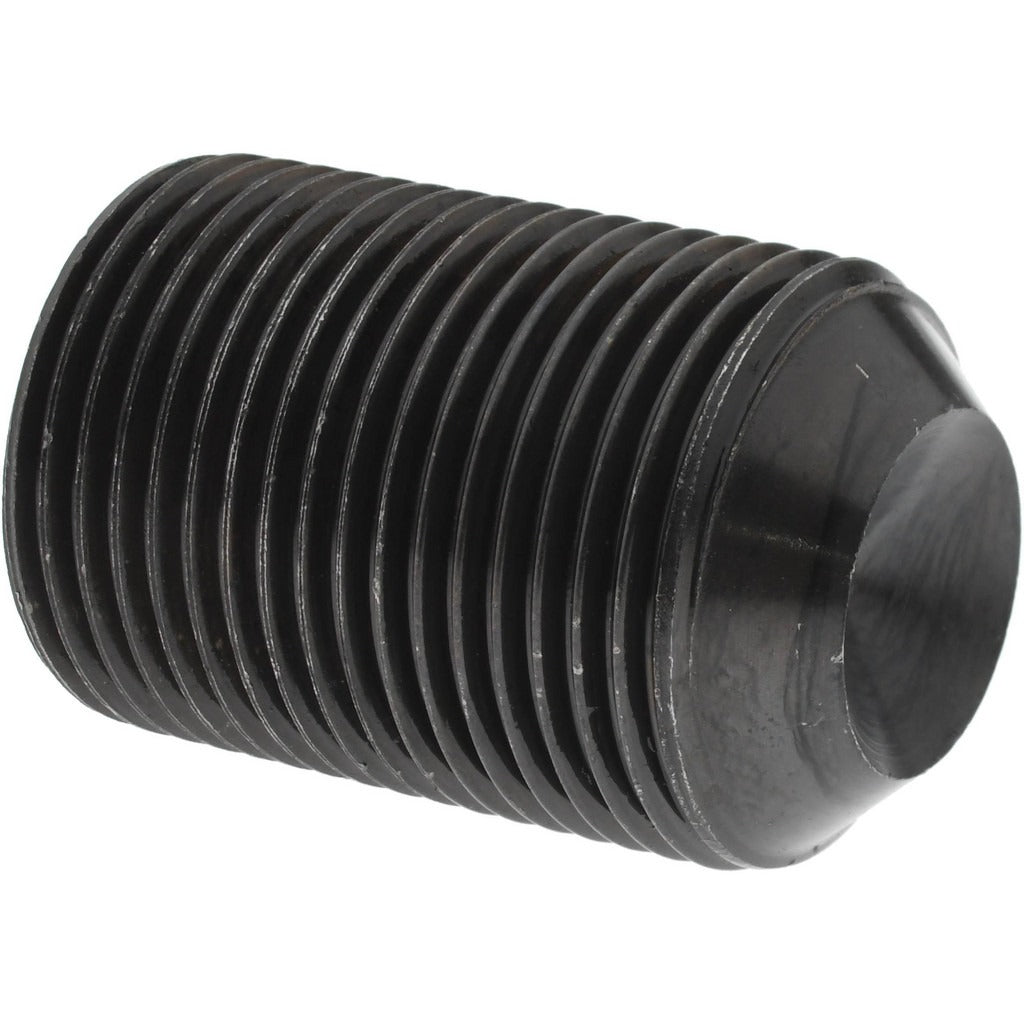

Value Collection 601534BR Set Screw 1-14 X 1-1/2 in Cup Point

Product Description

The VALUE COLLECTION 601534BR is a cup point set screw designed for secure, load-bearing fastening in mechanical assemblies. Manufactured from alloy steel to ASTM F912 and ASME/ANSI B18.3 standards, this fastener provides reliable holding force in shaft-to-hub and collar applications. The cup point geometry bites into the mating surface to resist rotation and axial movement under load. It measures 1-14 thread size by 1-1/2 inches in overall length and accepts a 9/16-inch hex key for installation. Maintenance technicians, millwrights, and industrial mechanics install this type of fastener across a wide range of power transmission and machinery applications.

This set screw is suited for use in rotating equipment, shaft collars, pulleys, sprockets, couplings, and similar mechanical assemblies where a flush or below-surface fastener is required. The unified fine thread (UNF) 1-14 designation indicates a large-diameter, fine-pitch thread suited for high-strength clamping loads. The fractional inch sizing makes it compatible with standard SAE tooling. It is sold and packaged individually.

Key Features

• Cup point geometry bites into shaft surface for positive resistance to rotation and axial shift
• Alloy steel construction meets ASTM F912 material grade requirements
• Conforms to ASME/ANSI B18.3 dimensional standard for socket set screws
• 1-14 UNF thread provides fine-pitch engagement for high clamping loads in large-diameter applications
• 9/16-inch hex drive accepts standard hex keys and T-handle drivers
• 1-1/2 inches overall length suits deeper collar and hub installations

Compatibility

Designed as a direct-fit replacement or stock fastener for any mechanical assembly requiring a 1-14 UNF cup point socket set screw conforming to ASME/ANSI B18.3 and ASTM F912 standards.

Installation Notes

Installation requires a calibrated 9/16-inch hex key or Allen driver. Ensure the mating shaft and collar bore are clean and free of debris before seating the screw. De-energize and lock out all rotating equipment before servicing any shaft fasteners. Torque to the assembly specification defined by the equipment manufacturer — no generic torque value applies across all applications for this thread size.
