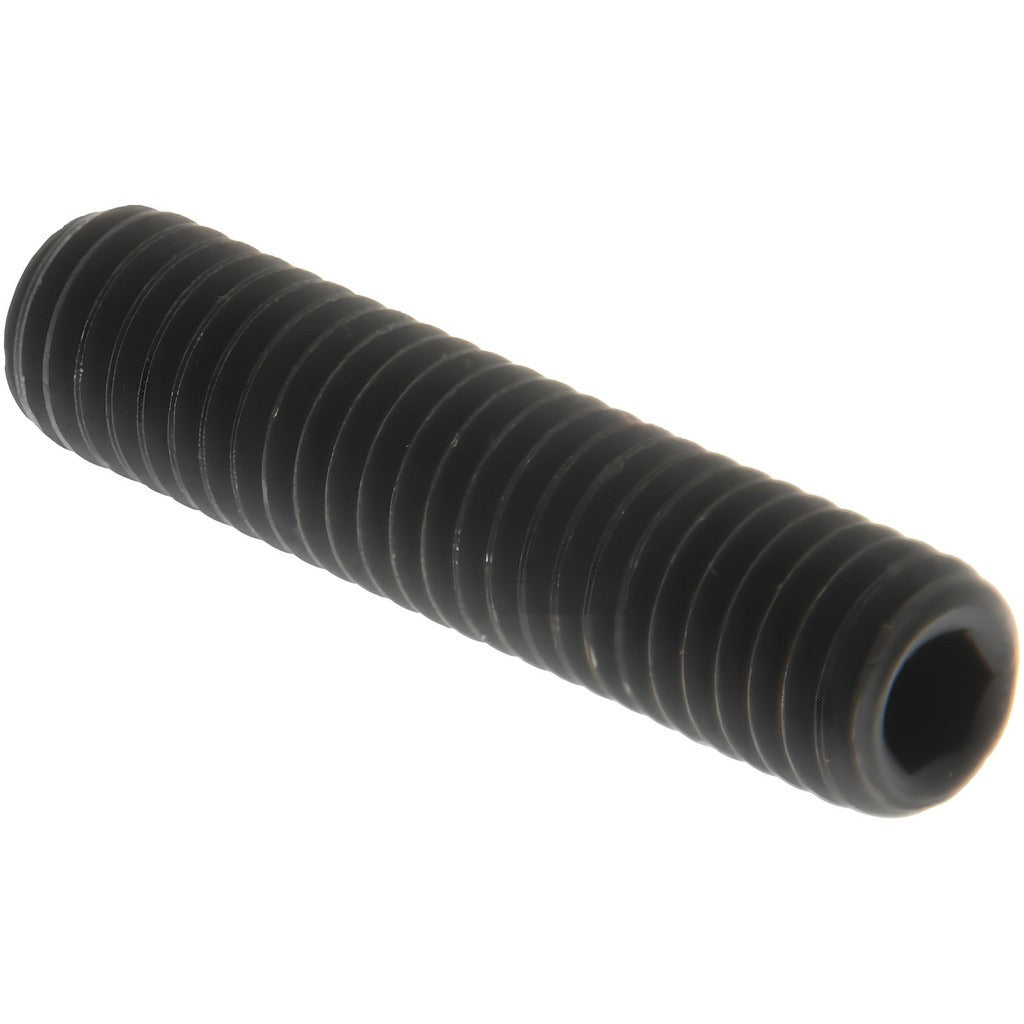

Value Collection 601182PR Set Screw 10-32 7/8in Cup Point

Product Description

The VALUE COLLECTION 601182PR is a cup point set screw designed for secure mechanical fastening in assemblies where a headless fastener is required. Threaded 10-32 UNF with an overall length of 7/8 inches, this screw is driven by a 3/32-inch hex key and seats firmly via its cup point tip. Manufactured from Grade 8 alloy steel, it meets ASME/ANSI B18.3 and ASTM F912 standards, making it appropriate for high-stress clamping applications. Machinists, millwrights, and mechanical technicians reach for this type of fastener when locking shafts, collars, pulleys, and similar components in place without protruding hardware.

This set screw is suited for light industrial and precision mechanical applications where a flush or recessed fastening point is needed. Typical installations include shaft-to-collar connections, set-in-place locking of rotating components, and assembly fixtures requiring repeatable clamp load. The 10-32 thread size is common in smaller mechanical assemblies, instrumentation hardware, and HVAC component brackets. Sold in multiples of 100 units, this part is appropriate for shop stock, maintenance kits, or production-line supply.

Key Features

• 10-32 UNF thread for compatibility with standard fine-thread tapped holes
• Cup point tip provides positive bite and reliable holding power on shafts and flat surfaces
• Grade 8 alloy steel construction for high tensile and torsional strength
• 3/32-inch hex drive allows use with standard hex keys and Allen wrenches
• Meets ASME/ANSI B18.3 and ASTM F912 dimensional and material standards
• Headless design sits flush or below the surface to prevent snagging on surrounding components

Compatibility

Designed as a standard 10-32 UNF cup point set screw for use in any application requiring an ASME/ANSI B18.3 compliant headless fastener in that thread size and length.

Installation Notes

Installation is performed by machinists, millwrights, or qualified mechanical technicians using a 3/32-inch hex key or Allen driver. Ensure the mating tapped hole is clean and free of debris before threading the screw. Torque to the fastener manufacturer or assembly drawing specification; do not over-drive, as cup point contact can damage shaft surfaces if excessive force is applied. Always de-energize and lock out any equipment before servicing fastened assemblies on rotating or powered components.
