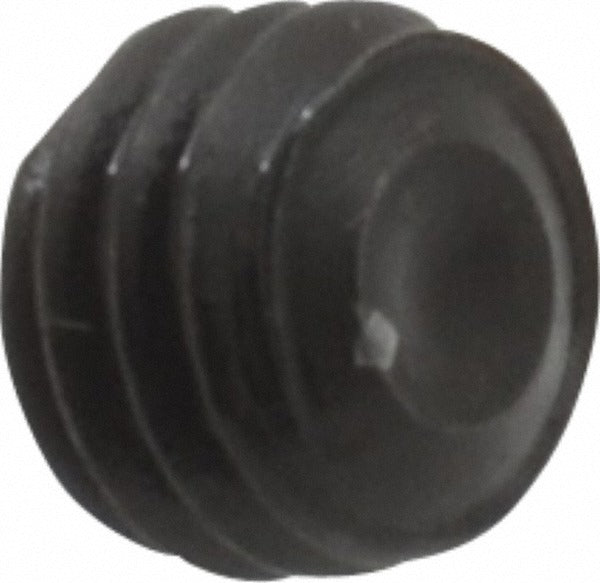

Value Collection 601180PR Set Screw 10-32 X 1/8 in Cup Point

Product Description

The VALUE COLLECTION 601180PR is a Grade 8 alloy steel set screw with a cup point tip and hex socket drive, sized at 10-32 x 1/8 inches overall length. Set screws of this type are used to lock components onto shafts, collars, and hubs without a protruding head. The cup point bites into the mating surface to resist axial and rotational movement under load. The 3/32-inch hex socket drive accepts a standard hex key. This fastener meets ASME/ANSI B18.3 and ASTM F912 standards, confirming dimensional and mechanical compliance. Installation is performed by maintenance technicians, machinists, and field service personnel across HVAC, mechanical, and industrial applications.

This set screw is suited for use in shaft collar assemblies, pulley and sprocket retention, and general mechanical subassemblies where a flush or recessed fastener is required. The 10-32 UNF thread provides fine-pitch engagement for precise axial positioning. Applications span residential and commercial HVAC equipment, fan and blower shaft assemblies, and light industrial machinery where Grade 8 alloy steel strength is specified.

Key Features

• 10-32 UNF thread with 1/8-inch overall length for compact, recessed installation
• Cup point tip bites into shaft surface to resist rotation and axial movement
• Grade 8 alloy steel construction for high tensile and torsional strength
• 3/32-inch hex socket drive compatible with standard hex keys
• Meets ASME/ANSI B18.3 and ASTM F912 dimensional and material standards
• Fractional inch measurement type; UNSPSC Code 31161505

Compatibility

Designed as an OEM-style replacement or service fastener for any application calling for a 10-32 x 1/8-inch cup point set screw in alloy steel Grade 8 to ASME/ANSI B18.3 specification.

Installation Notes

Installation requires a 3/32-inch hex key or T-handle driver. Always de-energize and lock out equipment before servicing shaft assemblies or replacing set screws. Verify that the mating shaft surface is clean and free of burrs before seating the cup point. Tighten to the torque value specified by the equipment manufacturer for the thread size and grade.
