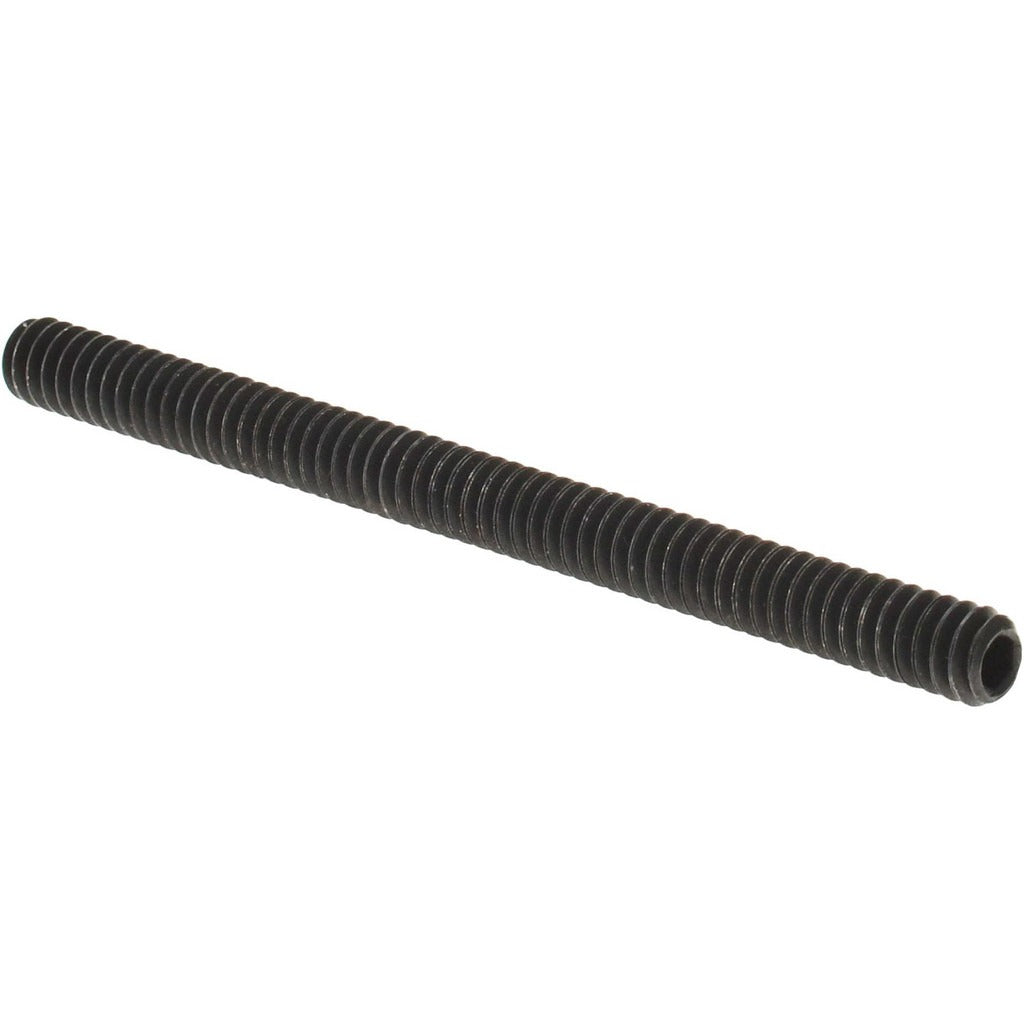

Value Collection 601176PR Set Screw 10-24 2-1/2 in Cup Point

Product Description

The VALUE COLLECTION 601176PR is a cup point set screw designed for mechanical fastening applications where a secure, recessed hold is required. Sized at 10-24 thread with an overall length of 2.5 inches, this fastener is driven with a 3/32-inch hex key and conforms to ASME/ANSI B18.3 and ASTM F912 standards. Constructed from alloy steel, it delivers the hardness and tensile strength needed for locking shafts, collars, and other components in position. Machinists, millwrights, and maintenance technicians working with rotating equipment or precision assemblies are the typical installers.

This set screw is suited for use in general industrial, HVAC mechanical, and equipment maintenance applications where a headless, flush-mount fastener is required. The cup point geometry bites into the mating surface to resist axial and rotational movement. It is appropriate for use in shaft collars, pulleys, gears, and similar components that require a locking fastener with no protruding head. The UNC thread standard ensures compatibility with standard inch-series tapped holes.

Key Features

• Cup point geometry provides positive bite into mating shaft or surface to resist movement
• Alloy steel construction delivers high hardness and tensile strength
• 3/32-inch hex drive for standard hex key installation in confined spaces
• 10-24 UNC thread standard for compatibility with standard inch-series tapped holes
• Meets ASME/ANSI B18.3 and ASTM F912 fastener standards
• Headless design sits flush with or below the surface of the mating component

Compatibility

Designed as a standard 10-24 UNC cup point set screw for use in any inch-series tapped hole requiring a headless fastener conforming to ASME/ANSI B18.3 and ASTM F912 specifications.

Installation Notes

Installation is performed by threading the set screw into a pre-tapped hole using a 3/32-inch hex key. De-energize and lock out any equipment before installing or removing fasteners from rotating components. Do not overtighten, as alloy steel set screws can shear or damage soft shaft materials if excessive torque is applied without guidance from the equipment manufacturer. Follow applicable machinery safety standards and equipment service manuals for specific installation procedures.
