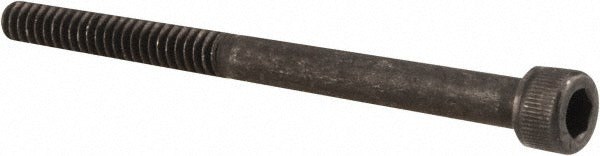

Value Collection 581294PR Hex Socket Cap Screw 10-24 Unc

Product Description

The VALUE COLLECTION 581294PR is a hex socket cap screw designed for applications requiring a secure, high-strength threaded fastener with a low-profile recessed drive. Sized at 10-24 UNC thread with a 2-3/8 inch length under head, this screw is partially threaded and driven by a 5/32 inch hex key. Constructed from alloy steel with a black oxide finish, it delivers corrosion resistance and surface hardness suited to industrial, mechanical, and structural assembly work. It meets ASME/ANSI B18.3 and ASTM A574 standards, confirming dimensional accuracy and tensile strength requirements for this screw class.

This fastener is used in a wide range of trade and industrial applications including machinery assembly, equipment mounting, jig and fixture fabrication, and general mechanical work. The 10-24 UNC thread is common in light to medium-duty mechanical assemblies. Partial threading provides improved clamping force when fastening through clearance holes into tapped stock. The black oxide finish is suitable for interior or protected environments where mild corrosion resistance is needed. It is installed by machinists, millwrights, maintenance technicians, and general contractors working with threaded metal assemblies.

Key Features

• 10-24 UNC thread size for compatibility with standard tapped holes in light to medium mechanical assemblies
• 2-3/8 inch length under head for extended reach in deeper fastening applications
• Partially threaded shank improves clamping when passing through clearance holes into threaded stock
• 5/32 inch hex drive for use with standard hex keys or Allen wrenches
• Alloy steel construction provides high tensile strength for demanding mechanical assemblies
• Black oxide finish adds mild corrosion resistance and reduces light reflection on exposed surfaces
• Meets ASME/ANSI B18.3 and ASTM A574 standards for dimensional and mechanical compliance

Compatibility

Designed as a standard hex socket cap screw for use in any application requiring a 10-24 UNC threaded fastener with a 5/32 inch hex drive and 2-3/8 inch length under head.

Installation Notes

Installation is performed using a 5/32 inch hex key or socket driver. Ensure the mating tapped hole is clean and free of debris before threading. Do not overtorque, as alloy steel fasteners at this thread size can be damaged by excessive force without proper torque tooling. Power down or de-energize any equipment before fastening into live mechanical or electrical assemblies.
