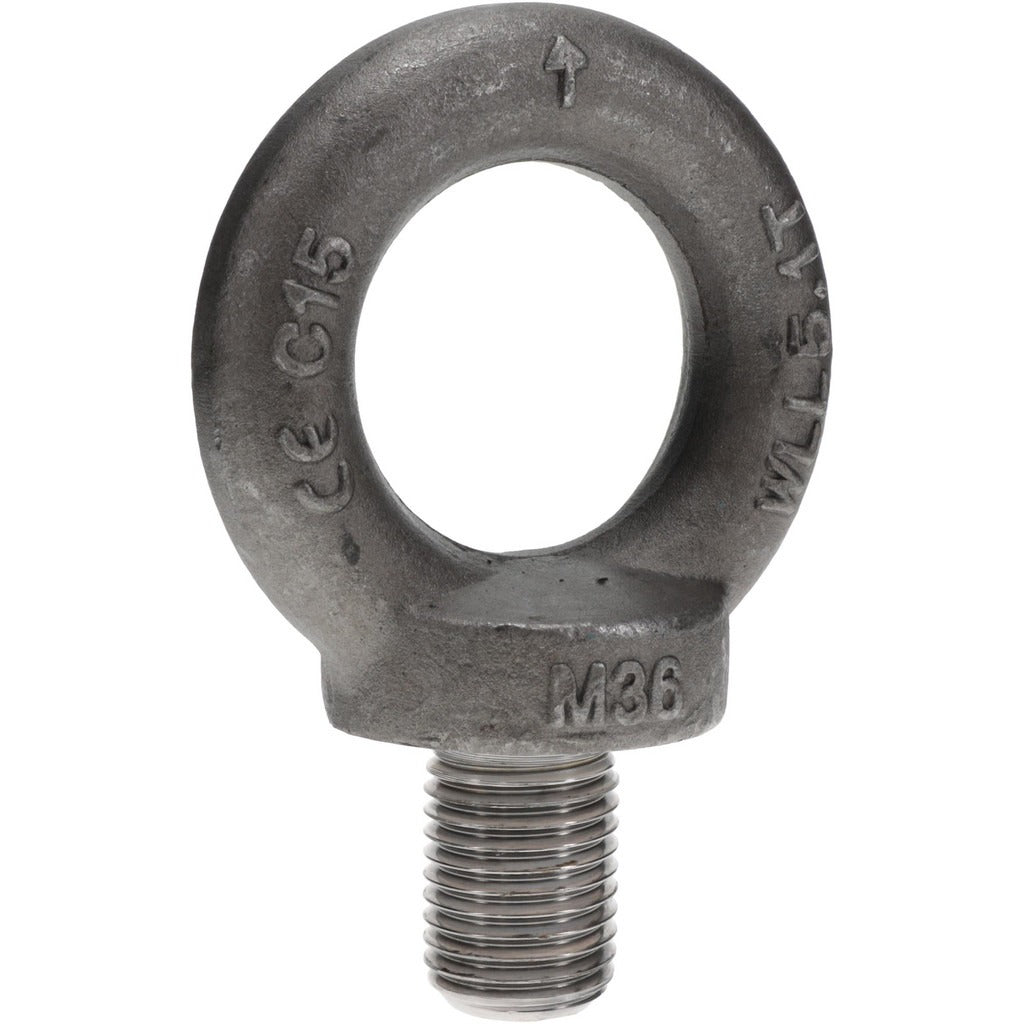

Value Collection 58036 Fixed Lifting Eye Bolt M36 X 4.00

Product Description

The VALUE COLLECTION 58036 is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and construction environments. Built from Grade 1015 steel, this eye bolt features a fully threaded shank with an M36 x 4.00 thread size and a 54 mm (approximately 2.13 inches) thread length. The shoulder configuration provides a bearing surface against the workpiece, which helps control load alignment and reduces stress at the mounting point. This type of hardware is typically installed by millwrights, riggers, and maintenance mechanics working with hoists, cranes, and lifting slings.

This eye bolt is suited for stationary, in-line lifting loads in industrial facilities, fabrication shops, and heavy equipment maintenance settings. The fixed design means it is intended for vertical or near-vertical pulls rather than angular loading. With a lifting capacity of 5,100 newtons and a fully threaded shank, it is appropriate for bolted connections in structural steel, machinery, and equipment frames where a secure, load-rated anchor point is required.

Key Features

• Fixed eye bolt configuration rated for vertical in-line lifting loads
• With-shoulder design provides a bearing surface for controlled load transfer
• M36 x 4.00 fully threaded shank with approximately 2.13 inches of thread engagement length
• Grade 1015 steel construction for structural strength
• Eye inside diameter of approximately 2.76 inches (70 mm) accommodates standard lifting hooks and shackles
• Shoulder and base diameter of approximately 2.95 inches (75 mm) for stable seating against the work surface

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use in industrial rigging and lifting applications requiring an M36 x 4.00 threaded anchor point with a shoulder bearing surface.

Installation Notes

Installation should be performed by a qualified rigger or licensed mechanical contractor familiar with applicable ASME B30 and OSHA rigging standards. Fully seat the shoulder flush against the mounting surface before applying any load, and verify thread engagement meets or exceeds specification requirements for the application. Never apply angular or side loads to a fixed eye bolt not rated for that use. Always inspect the eye bolt and threaded bore for damage, corrosion, or wear before each lift.
