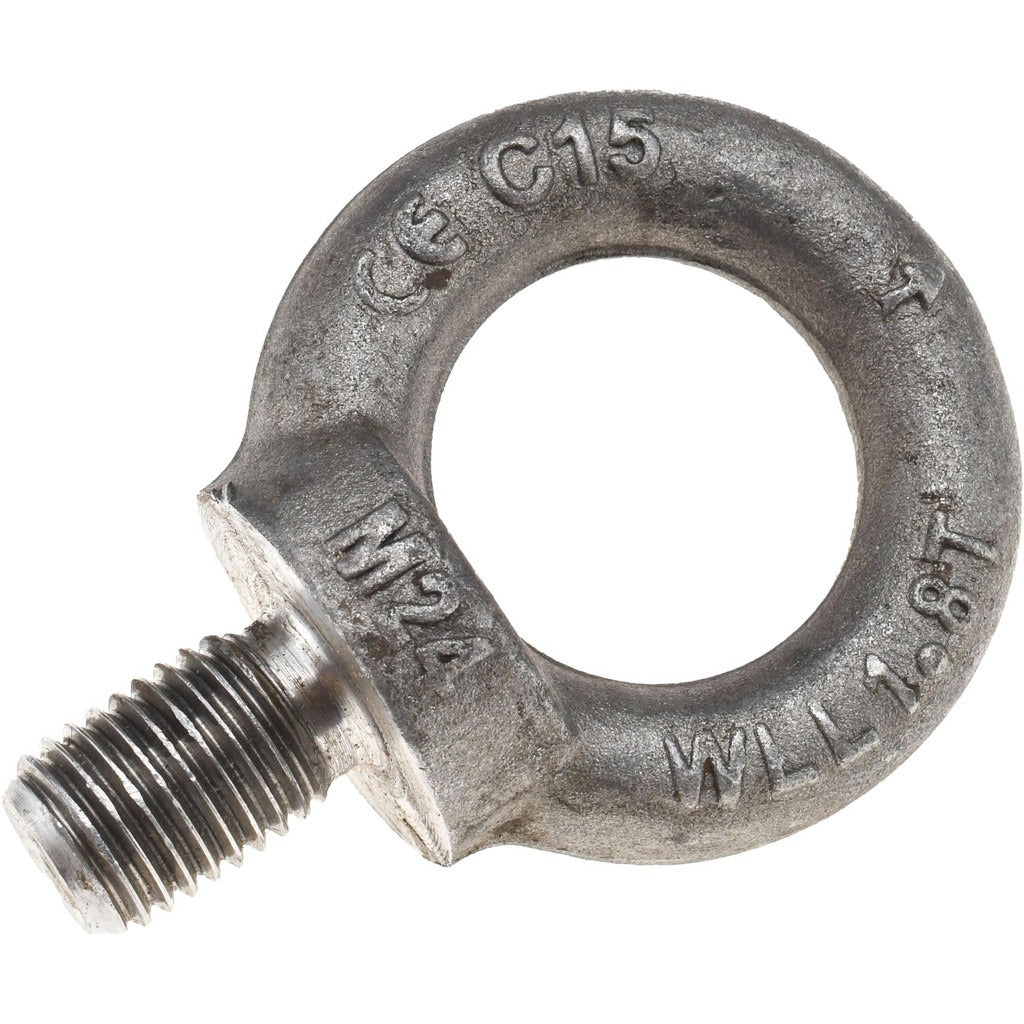

Value Collection 58024 Fixed Lifting Eye Bolt M24 X 3.00

Product Description

The VALUE COLLECTION 58024 is a fixed lifting eye bolt designed for overhead lifting and rigging applications in industrial and commercial environments. Built from Grade 1015 steel, this shouldered eye bolt features a fully threaded shank with an M24 x 3.00 thread size and a 36 mm shank length. The shoulder base seats flush against the load surface, providing a stable bearing point and consistent load alignment. Rated at 1800 newtons lifting capacity, it is suited for use with hooks, shackles, and hoisting hardware in mechanical, fabrication, and maintenance settings. Licensed riggers and maintenance mechanics are the typical installers of this hardware.

This eye bolt is intended for metric-threaded applications requiring a fixed, non-swiveling lift point. The shoulder design distributes load force across the base rather than concentrating stress at the thread entry, making it appropriate for straight vertical lifts. It is commonly installed in manufacturing plants, equipment repair facilities, and structural assemblies where a permanent or semi-permanent lift point is needed. The fully threaded shank allows engagement through varying material thicknesses up to 36 mm of thread engagement.

Key Features

• Fixed eye design with shoulder base for stable vertical lifting
• M24 x 3.00 fully threaded shank for metric fastener compatibility
• Grade 1015 steel construction for solid mechanical strength
• 50 mm inside eye diameter accommodates standard rigging hooks and shackles
• Shoulder and base diameter of 50 mm seats flush against the mating surface
• 1800 newton rated lifting capacity

Compatibility

Designed as an OEM-style fixed lifting eye bolt for metric-threaded applications requiring an M24 x 3.00 shouldered lift point in industrial rigging and material handling systems.

Installation Notes

Installation should be performed by a qualified rigger or licensed mechanic following applicable ASME B30 and OSHA rigging standards. Thread the bolt fully into the mating tapped hole until the shoulder seats completely against the load surface before applying any lift load. Never side-load a fixed eye bolt beyond its rated straight-line capacity. Inspect threads and the eye for deformation, corrosion, or cracking before each use.
