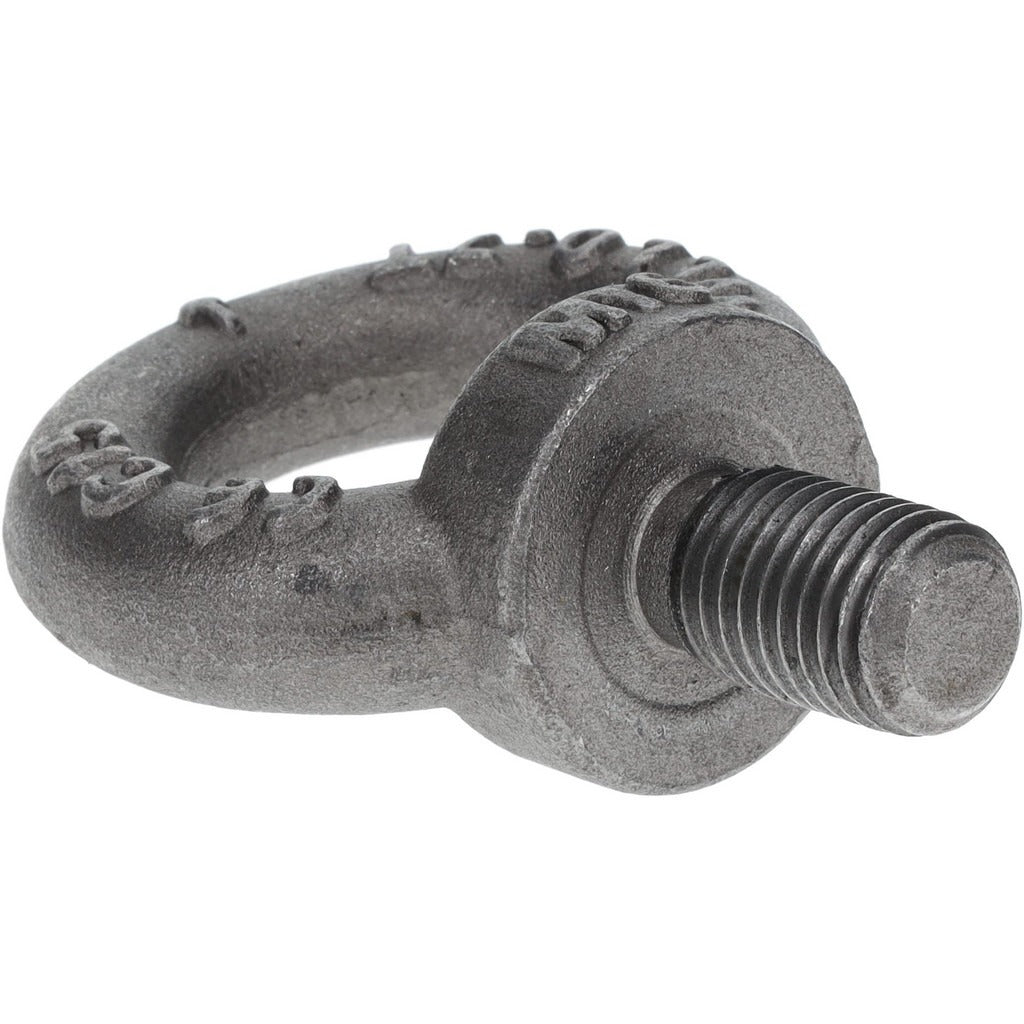

Value Collection 58016 Fixed Shoulder Eye Bolt M16 X 2.00

Product Description

The VALUE COLLECTION 58016 is a fixed shoulder eye bolt designed for straight-line lifting applications in industrial and trade environments. Machined from Grade 1015 steel, this fully threaded bolt features an M16 x 2.00 thread and a 35 mm shoulder base that seats flush against the load surface to provide stable, centered load transfer. The fixed eye orientation means the load path must align directly with the eye plane for safe use. This hardware is installed by millwrights, rigging crews, maintenance mechanics, and general contractors in facilities requiring rated lifting points on machinery, structural steel, or equipment frames.

This eye bolt is suited for metric threaded applications in manufacturing, fabrication, and maintenance environments where a secure, fixed anchor point is needed. The fully threaded shank allows engagement across the full 27 mm thread length, providing maximum thread contact in the tapped bore. The shoulder design is required when using eye bolts at any load angle, as it seats against the mating surface and prevents the bolt from pulling through. Typical applications include machine lifting, fixture mounting, and rigging anchor points in light to medium industrial settings.

Key Features

• Fixed eye design with shoulder base for stable, flush seating against load surface
• Fully threaded M16 x 2.00 shank with 27 mm thread length for full bore engagement
• Grade 1015 steel construction for adequate strength in rated lifting service
• 35 mm shoulder and base diameter for positive bearing contact
• 63 mm eye outside diameter accommodates standard shackles and hooks
• Metric dimensioning throughout for compatibility with metric-threaded equipment

Compatibility

Designed for use in metric-threaded bores requiring an M16 x 2.00 fixed shoulder eye bolt for straight-line lifting and rigging applications.

Installation Notes

Installation should be performed by qualified rigging or maintenance personnel familiar with applicable lifting hardware standards such as ASME B30.26. Always ensure the tapped bore is clean and the shoulder seats fully and flush against the mating surface before applying any load. Fixed eye bolts must only be loaded in the plane of the eye and in a straight vertical line — angular or side loading on a fixed eye bolt is prohibited. De-tension and inspect the bolt and threads for wear or damage before each use.
