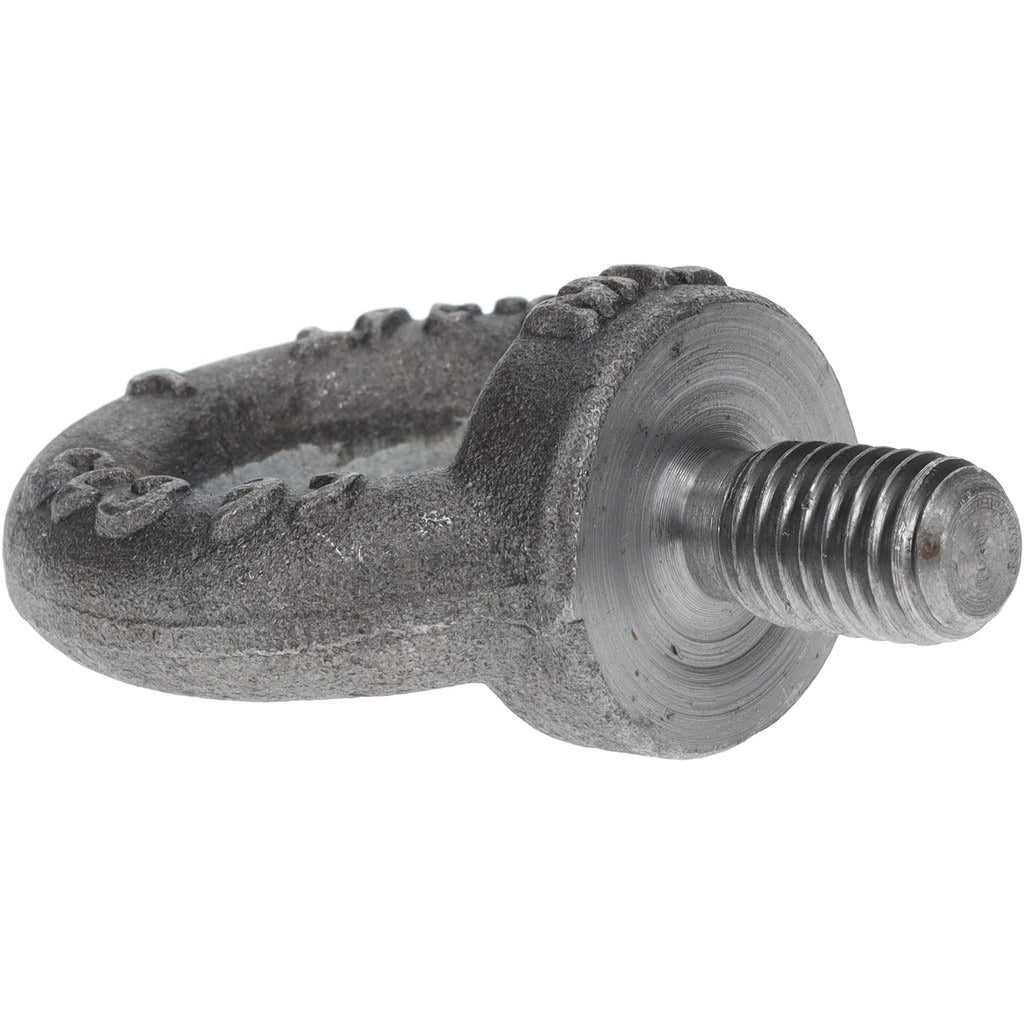

Value Collection 58012 Fixed Lifting Eye Bolt M12 X 1.75

Product Description

The VALUE COLLECTION 58012 is a fixed lifting eye bolt with a shoulder, designed for use in overhead lifting and load-securing applications. Constructed from grade 1015 steel, this fully threaded eye bolt features an M12 x 1.75 thread and a shoulder base that provides a stable seating surface against the workpiece. The shoulder style prevents the eye from tilting under load, making it appropriate for in-line vertical lifts. A thread length of 20.5 millimeters and shank length of 20.5 millimeters suit standard rigging setups. This hardware is installed by millwrights, riggers, and maintenance mechanics working in industrial and manufacturing environments.

This eye bolt is suited for use in stationary overhead rigging, machinery positioning, and load-attachment points in industrial, commercial, and maintenance settings. The fixed eye style is intended strictly for in-line vertical loading and should not be used for angular or side-pull loads without appropriate hardware substitution. The metric thread specification makes this bolt compatible with metric-threaded fixtures and mounting blocks common in manufacturing facilities and imported equipment assemblies.

Key Features

• Fixed eye style with shoulder base for stable, in-line vertical lifting
• Fully threaded shank for maximum thread engagement depth
• M12 x 1.75 metric thread for compatibility with standard metric fixtures
• Grade 1015 steel construction for structural rigidity in rigging applications
• Eye inside diameter of 30 millimeters accommodates standard shackles and hooks
• Shoulder and base diameter of 30 millimeters for flush seating against mounting surface

Compatibility

Designed as a standard metric lifting eye bolt for use in rigging systems, machinery mounts, and load-securing applications requiring an M12 x 1.75 threaded connection point.

Installation Notes

Installation is performed by qualified riggers or maintenance mechanics following applicable ASME B30.26 rigging hardware guidelines. Thread the bolt fully into a rated mounting point and torque to the mounting specification of the receiving fixture before use. Confirm the load path is vertical and in-line with the eye axis, as fixed eye bolts are not rated for angular loading. Inspect the eye and threads for damage before each lift and remove from service if deformation or corrosion is present.
