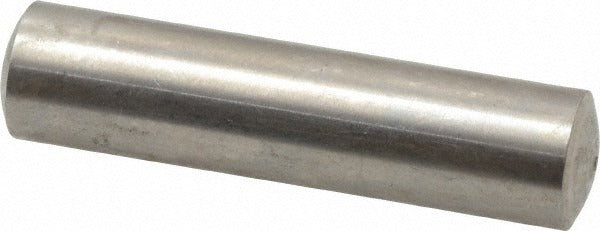

Value Collection 551534PS Dowel Pin 8x32mm Ss 316

Product Description

The VALUE COLLECTION 551534PS is a standard pull out dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. Measuring 8 mm in diameter and 32 mm in overall length, this pin is designed to precisely locate and align mating components in mechanical assemblies. The rounded end type allows for guided insertion, and the Grade 316 stainless steel construction provides strong resistance to corrosion in wet, chemical, or marine environments. This pin conforms to DIN 7 EN ISO 2338 fastener standards, making it a recognized specification part for industrial and maintenance applications. Machinists, maintenance technicians, and tool-and-die professionals commonly install these pins.

This dowel pin is suited for use in precision alignment applications across a wide range of industries including food processing, marine, chemical processing, and general manufacturing where corrosion resistance is required. The DIN 7 EN ISO 2338 standard designation ensures dimensional consistency for drop-in replacement in existing fixtures, jigs, tooling plates, and assembled housings. Each pin is sold individually, with a minimum order quantity of 10 units.

Key Features

• Grade 316 stainless steel for superior corrosion resistance in harsh or wet environments
• Conforms to DIN 7 EN ISO 2338 fastener standard for dimensional accuracy
• Rounded end type for guided, controlled insertion into bored holes
• Bright, uncoated finish with no added coating to affect tolerances
• 8 mm diameter x 32 mm length for standard alignment applications
• UNSPSC Code 31163203 for procurement and catalog classification

Compatibility

Designed as a DIN 7 EN ISO 2338 standard pull out dowel pin, this part is compatible with any application requiring an 8 mm diameter by 32 mm length alignment pin in Grade 316 stainless steel.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press, mallet, or dowel driver tool. Ensure receiving holes are reamed or drilled to the correct tolerance per DIN 7 specifications before installation. Avoid forcing the pin into undersized holes, as this can cause bore damage or pin deformation. Remove all chips and debris from the bore before seating the pin.
