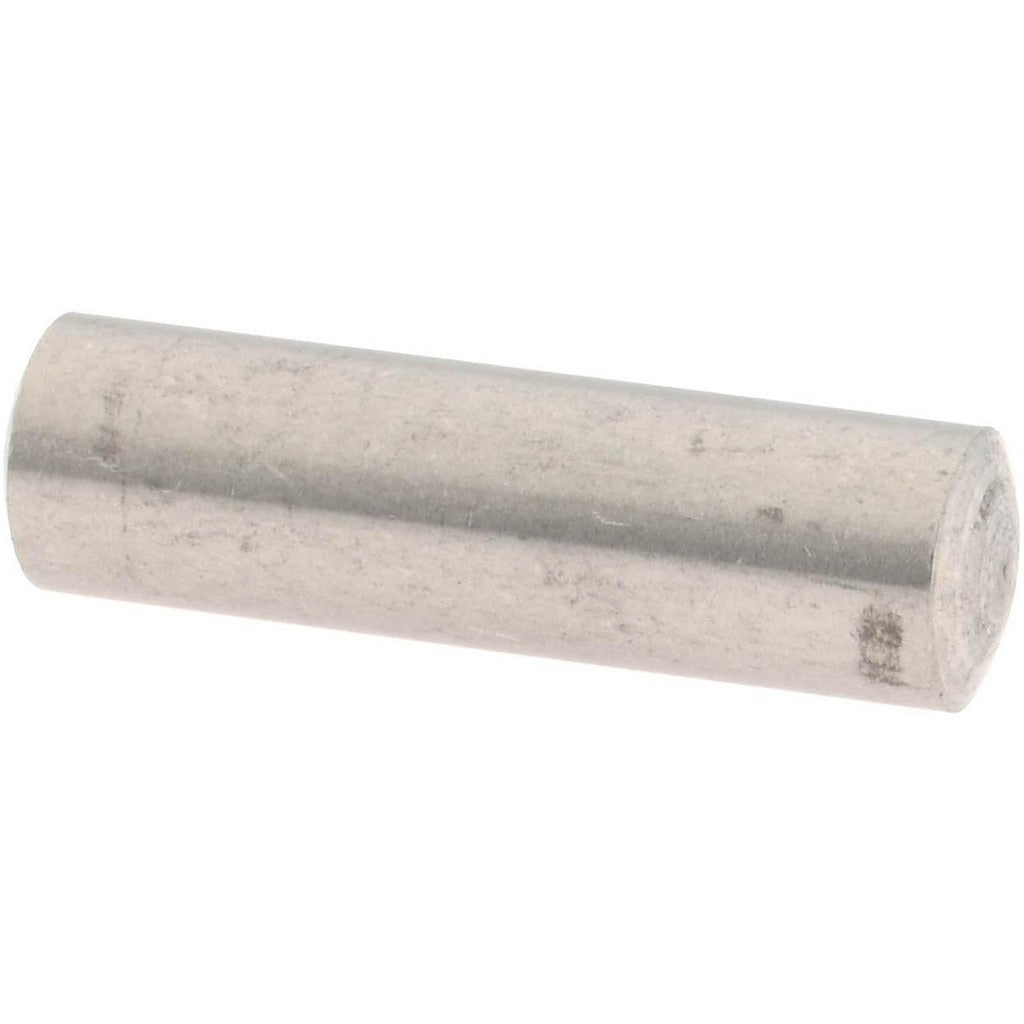

Value Collection 551435PS Dowel Pin 6x20mm Ss Grade 316

Product Description

The VALUE COLLECTION 551435PS is a standard pull out dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. At 6 mm in diameter and 20 mm in overall length, this pin meets the DIN 7 EN ISO 2338 fastener standard and features a rounded end type. It is used to precisely locate and align mating components in assemblies, jigs, and fixtures. Grade 316 stainless steel provides enhanced corrosion resistance compared to Grade 304, making this pin suitable for wet, chemical, or marine environments where standard carbon steel pins would degrade. Machinists, tool and die makers, and maintenance technicians install these pins in production and assembly applications.

This dowel pin is suited for use in precision alignment applications across industrial, marine, food processing, and chemical processing environments where corrosion resistance is a priority. The DIN 7 EN ISO 2338 standard governs dimensional tolerances and fit classifications, making this pin a direct replacement or complement to other DIN 7-compliant pins in the same diameter and length. It is commonly installed in machine frames, fixture plates, and component housings that require repeatable, accurate part positioning.

Key Features

• Grade 316 stainless steel construction for superior corrosion resistance in harsh or wet environments
• Meets DIN 7 EN ISO 2338 fastener standard for dimensional accuracy and fit compliance
• 6 mm diameter by 20 mm overall length for precise locating applications
• Rounded end type facilitates clean insertion into bored holes
• Bright, uncoated finish maintains tight dimensional tolerances out of the box
• Pull out style design aids removal during disassembly and maintenance cycles

Compatibility

Designed as an OEM-style replacement or specification-compliant addition for assemblies requiring DIN 7 EN ISO 2338 standard dowel pins at 6 mm diameter and 20 mm length.

Installation Notes

Dowel pins of this type are installed by machinists or maintenance technicians using a press or mallet into reamed, tolerance-matched holes. Always verify bore diameter and hole depth match the pin specifications before installation to ensure proper fit class and prevent binding or slop. Power down and de-energize any machinery before servicing components that incorporate locating pins. The pull out design allows for controlled removal with standard extraction tools without damaging the mating bore.
