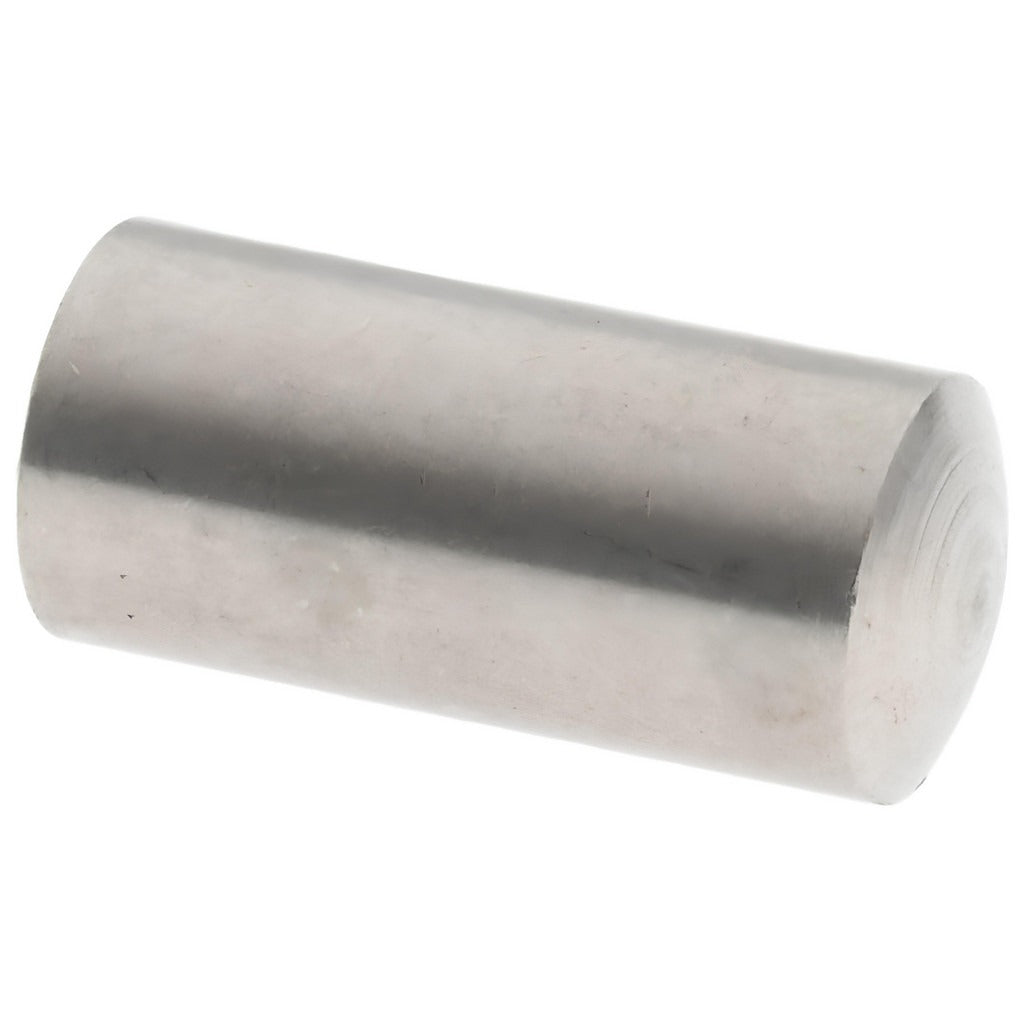

Value Collection 551345PR Dowel Pin 5x10mm SS316

Product Description

The VALUE COLLECTION 551345PR is a standard pull out dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. This pin measures 5 mm in diameter and 10 mm in overall length, featuring a rounded end type that aids in alignment and insertion during assembly. Conforming to DIN 7 EN ISO 2338, it meets widely recognized dimensional and tolerance standards for dowel pins used in precision positioning and locating applications. Machinists, tool and die makers, and maintenance technicians install these pins to accurately align mating components in fixtures, jigs, dies, and mechanical assemblies.

This dowel pin is suited for industrial and manufacturing environments where corrosion resistance is a priority. Grade 316 stainless steel provides enhanced resistance to chlorides and harsh process environments compared to Grade 304, making this pin appropriate for food processing equipment, marine hardware, chemical handling assemblies, and similar demanding applications. The bright finish confirms an uncoated surface, preserving tight dimensional tolerances straight from the manufacturer. Sold individually, with a minimum order quantity of 10 pieces.

Key Features

• Conforms to DIN 7 EN ISO 2338 dimensional standard for reliable interchangeability
• Grade 316 stainless steel construction for superior corrosion resistance in wet or chemical environments
• 5 mm diameter x 10 mm overall length for compact, precise locating applications
• Rounded end type facilitates smooth insertion and component alignment
• Bright, uncoated finish maintains tight manufacturing tolerances
• Minimum order quantity of 10 pieces per order

Compatibility

Designed as an OEM-style precision locating pin for use in fixtures, jigs, dies, and mechanical assemblies requiring DIN 7 EN ISO 2338 compliant dowel pins with a 5 mm diameter and 10 mm length.

Installation Notes

Dowel pins of this type are typically pressed or driven into reamed holes by machinists or maintenance technicians using an arbor press or soft-faced mallet. Ensure mating hole tolerances conform to DIN 7 EN ISO 2338 specifications before installation to achieve proper fit. De-energize and lock out all equipment before performing any disassembly or pin replacement work. Avoid striking the pin directly with a hard-faced hammer to prevent deformation of the rounded end or damage to the bore.
