Value Collection 551264PR Dowel Pin 4x6mm Ss Grade 316

Product Description

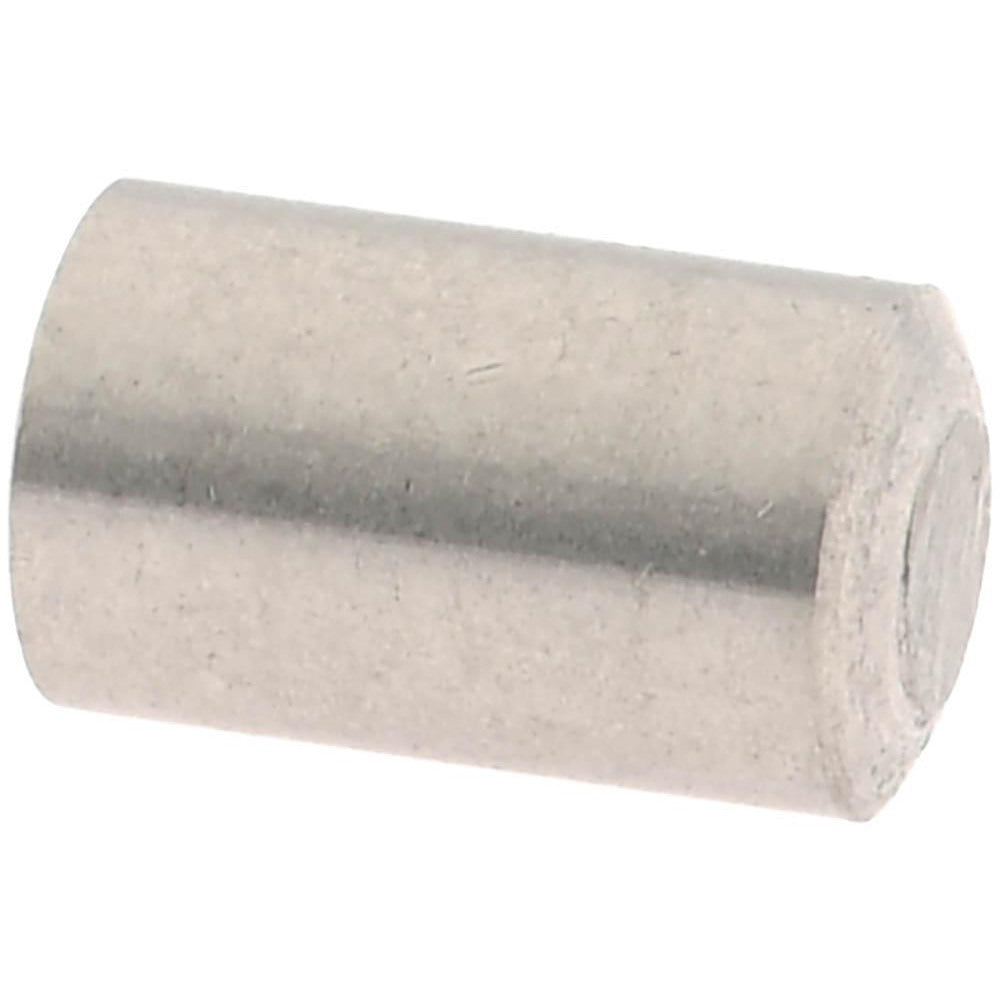

The VALUE COLLECTION 551264PR is a standard pull out dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. At 4 mm in diameter and 6 mm in overall length, this pin is designed to provide precise, repeatable alignment between mating components in assemblies requiring tight positional tolerances. The rounded end type allows for smooth insertion into reamed holes. Conforming to DIN 7 EN ISO 2338, the pin meets internationally recognized dimensional and tolerance standards. Machinists, toolmakers, and maintenance technicians install these pins where corrosion resistance and dimensional accuracy are both required.

This dowel pin is suited for use in fixtures, jigs, dies, molds, and general mechanical assemblies across industrial and manufacturing environments. The Grade 316 stainless steel construction makes it an appropriate choice in applications exposed to moisture, mild chemicals, or food-processing environments where carbon steel would corrode. The compact 4 mm x 6 mm size is commonly specified in precision subassemblies, instrument housings, and light tooling. This item is sold individually but carries a minimum order quantity of 100 pieces.

Key Features

• Grade 316 stainless steel construction provides superior corrosion resistance compared to standard 18-8 grades
• Bright, uncoated finish maintains precise dimensional tolerances per DIN 7 EN ISO 2338
• Rounded end type facilitates clean, guided insertion into reamed or drilled alignment holes
• 4 mm diameter x 6 mm length suits compact precision assemblies and light tooling applications
• Conforms to DIN 7 EN ISO 2338 for internationally recognized fitment and interchangeability

Compatibility

Designed as a standard-dimension replacement or new-installation dowel pin conforming to DIN 7 EN ISO 2338, suitable for any fixture, jig, die, or mechanical assembly specifying a 4 mm diameter pull out dowel pin in Grade 316 stainless steel.

Installation Notes

Dowel pins of this type are typically pressed or driven into reamed holes by machinists or maintenance technicians using a pin press or soft-faced mallet. Hole diameter and surface finish should meet the tolerance requirements specified by DIN 7 EN ISO 2338 to achieve the correct fit class. Ensure mating components are clean and free of burrs before installation. Always de-energize or lock out any machinery before disassembling or reassembling pinned components.
