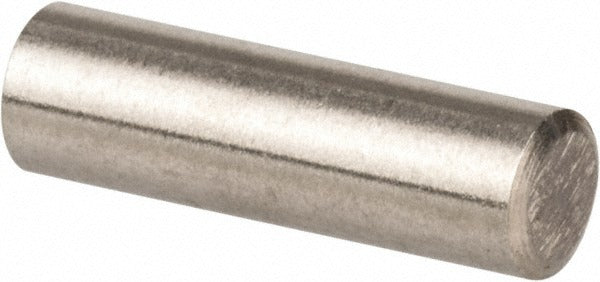

Value Collection 551207PR Dowel Pin 3x10mm SS316

Product Description

The VALUE COLLECTION 551207PR is a standard pull out dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. Measuring 3 mm in diameter and 10 mm in overall length, this pin conforms to DIN 7 EN ISO 2338 standards and features a rounded end type. It is used to align, locate, or retain mating components in assemblies where precise positioning is critical. Grade 316 stainless steel provides strong corrosion resistance, making this pin suitable for demanding or moisture-exposed environments. Machinists, tool-and-die technicians, and mechanical assembly professionals install this type of pin in fixture and jig work, machine frames, and precision assemblies.

This dowel pin is suited for applications in industrial machinery, manufacturing fixtures, and mechanical assemblies where tight dimensional tolerances and reliable corrosion resistance are required. The DIN 7 EN ISO 2338 standard ensures dimensional consistency for use in metric-specification designs. The pull-out style allows for disassembly without damaging the bore. This SKU is sold individually and is subject to a minimum order quantity of 100 pieces.

Key Features

• Conforms to DIN 7 EN ISO 2338 for dimensional accuracy in metric assemblies
• Grade 316 stainless steel construction for enhanced corrosion resistance
• Bright, uncoated finish maintains precise tolerances without added coating thickness
• Rounded end type for controlled insertion and alignment
• Pull-out design allows non-destructive removal from bored holes
• 3 mm diameter by 10 mm length for compact precision fastening applications

Compatibility

Designed as a DIN 7 EN ISO 2338 compliant metric dowel pin for use in standard metric-tolerance bores requiring a 3 mm diameter pull out pin in industrial and mechanical assembly applications.

Installation Notes

Installation typically requires a press fit into a reamed hole held to DIN 7 tolerances. Power down and de-energize all associated equipment before working on any assembly. Use appropriate hand or hydraulic press tooling rated for the interference fit; do not drive pins with impact tools that may damage the bore or pin geometry. Removal is performed using the pull-out feature with a slide hammer or puller tool designed for metric dowel pins.
