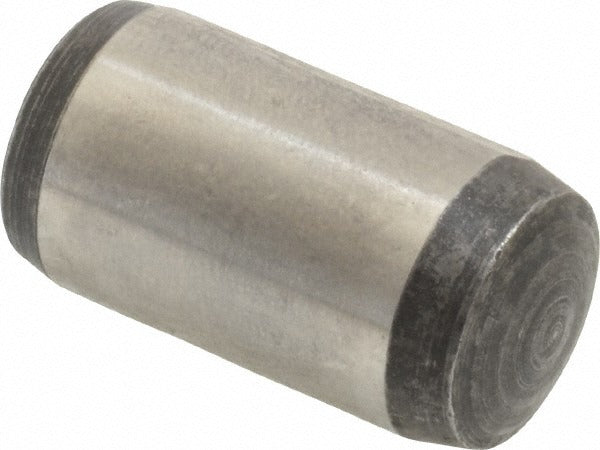

Value Collection 548602BR Dowel Pin 16x30mm Alloy Steel

Product Description

The VALUE COLLECTION 548602BR is a flat vent pull out dowel pin manufactured from alloy steel to DIN 7979D standards. It measures 16 mm in diameter and 30 mm in overall length, with one rounded end and one threaded end for pull-out removal. The pin is hardened to 57-63 HRC, providing the surface durability required for precision locating and alignment applications in tooling, fixturing, and machine components. This style of dowel pin is typically installed and removed by machinists, tool-and-die technicians, and mechanical assembly professionals working with close-tolerance components.

Flat vent pull out dowel pins in this configuration are used where controlled press fits are required alongside the need for easy, controlled extraction without damage to the bore or surrounding material. The flat vent groove relieves hydraulic pressure during insertion, and the threaded end accepts a slide hammer or extraction tool for clean removal. This pin is suited for use in jigs, dies, molds, and precision fixtures across industrial manufacturing environments.

Key Features

• DIN 7979D standard flat vent pull out configuration for reliable locating and extraction
• 57-63 HRC surface hardness for wear resistance and dimensional stability
• One rounded end for guided insertion, one threaded end for tool-assisted extraction
• Alloy steel construction for high-strength performance in precision tooling applications
• Flat vent groove reduces hydraulic lock during press-fit installation

Compatibility

Designed as an OEM-style replacement or direct-use dowel pin for precision fixtures, jigs, dies, and molds requiring a DIN 7979D flat vent pull out style pin with a 16 mm diameter and 30 mm length.

Installation Notes

Installation is performed by qualified machinists or mechanical assembly technicians using appropriate press equipment or hand tools. Ensure the receiving bore is clean, properly toleranced, and free of debris before insertion. The threaded end is designed to accept a standard extraction tool or slide hammer for removal — do not attempt to drive the pin out from the threaded end. Minimum order quantity is 2 units; plan accordingly for tooling and fixture builds.
