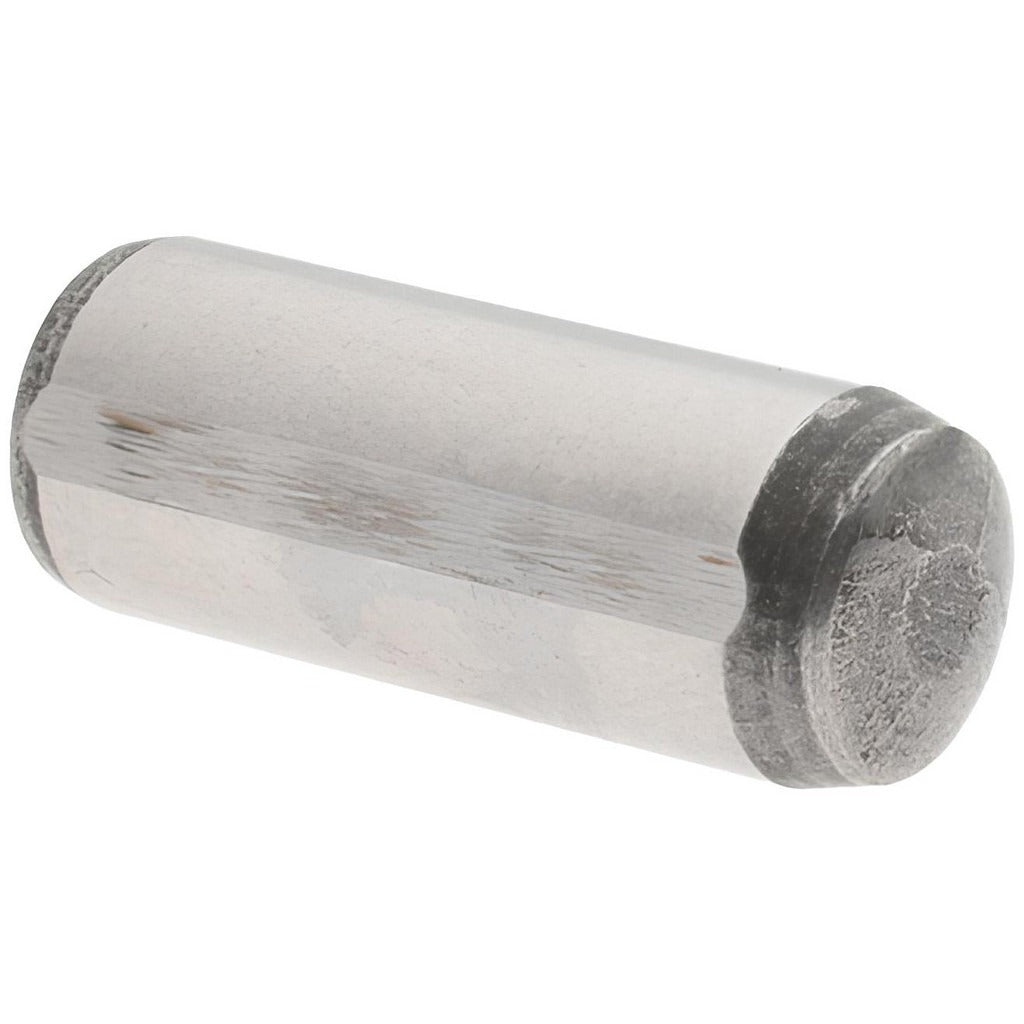

Value Collection 548456PS Dowel Pin 12x30mm Alloy Steel

Product Description

The VALUE COLLECTION 548456PS is a flat vent pull out dowel pin designed for precision locating and alignment applications in industrial assemblies. Manufactured from alloy steel and hardened to 57-63 HRC, this pin delivers the wear resistance and dimensional stability required for press-fit and pull-out service. The pin measures 12 millimeters in diameter and 30 millimeters in overall length, conforming to DIN 7979D. One end is rounded for guided insertion, while the opposite end is threaded to accept a pull-out tool. Machinists, tool and die technicians, and maintenance professionals install these pins in jigs, fixtures, molds, and machine components where repeatable, accurate part positioning is critical.

This dowel pin is suited for use in precision machining fixtures, die sets, injection molds, and general industrial tooling where a flat vent groove is required to allow air and lubricant to escape during pin installation. The flat vent profile prevents hydraulic lock in blind holes, making the 548456PS appropriate for close-tolerance blind-hole applications. It is sold individually per package, with a minimum order quantity of 2 pieces.

Key Features

• Flat vent groove design prevents hydraulic lock in blind-hole installations
• Alloy steel construction hardened to 57-63 HRC for high wear resistance
• Threaded end allows pull-out tool engagement for controlled removal
• Rounded end aids guided entry into close-tolerance bores
• Conforms to DIN 7979D standard for dimensional consistency
• 12 millimeter diameter by 30 millimeter length suits common fixture and mold applications

Compatibility

Designed as a DIN 7979D-compliant replacement or service pin for industrial jigs, fixtures, die sets, and molds requiring a 12 millimeter flat vent pull out dowel pin in a 30 millimeter length.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or mallet with an appropriate driver. Ensure the receiving bore is clean, within tolerance, and free of burrs before pressing the pin. The threaded end must remain accessible for pull-out tool engagement during removal. Follow applicable workplace safety procedures and consult the equipment OEM documentation for bore fit tolerances before installation.
