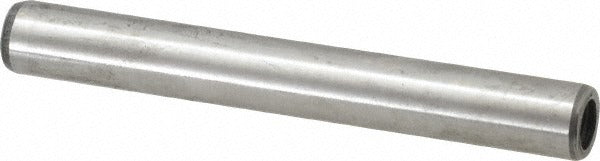

Value Collection 548390PS Dowel Pin 10x80mm Alloy Steel

Product Description

The VALUE COLLECTION 548390PS is a flat vent pull out dowel pin engineered for precision alignment and secure component positioning in tooling, fixtures, and machine assemblies. Manufactured from alloy steel with a hardness rating of 57-63 HRC, this pin delivers the wear resistance and dimensional stability required in demanding industrial applications. The pin measures 10 mm in diameter and 80 mm in overall length, with one rounded end and one threaded end to facilitate pull-out removal without damage to mating components. Installation and removal are handled by maintenance technicians and toolmakers working on jigs, dies, and precision machinery.

This dowel pin is suited for use in tooling plates, mold bases, fixture plates, and machine component alignment where tight-tolerance positioning is required. The flat vent design allows trapped air and lubricant to escape during press-fit installation, reducing hydraulic lock. Compliance with DIN 7979D ensures dimensional conformity for applications requiring standardized fastener geometry. It is commonly specified in production and maintenance environments where repeatable part location is critical.

Key Features

• Flat vent design vents air and fluid during press-fit installation to prevent hydraulic lock
• 57-63 HRC alloy steel hardness for wear resistance in high-cycle tooling applications
• One rounded end and one threaded end for controlled pull-out removal
• Conforms to DIN 7979D standard for dimensional consistency
• 10 mm diameter x 80 mm length for medium-duty alignment applications

Compatibility

Designed as an OEM-style replacement or direct-fit component for tooling, fixture plates, and machine assemblies requiring DIN 7979D compliant flat vent pull out dowel pins with a 10 mm diameter.

Installation Notes

Dowel pins of this type are typically installed by toolmakers or maintenance technicians using an arbor press or similar controlled-force equipment. Always de-energize and lock out machinery before servicing any tooling or fixture components. Verify bore diameter and tolerance before installation to ensure proper press-fit engagement. The threaded end allows use of a standard extraction tool or slide hammer for removal without damaging the bore.
