Value Collection 548386PS Dowel Pin 10x60mm Alloy Steel

Product Description

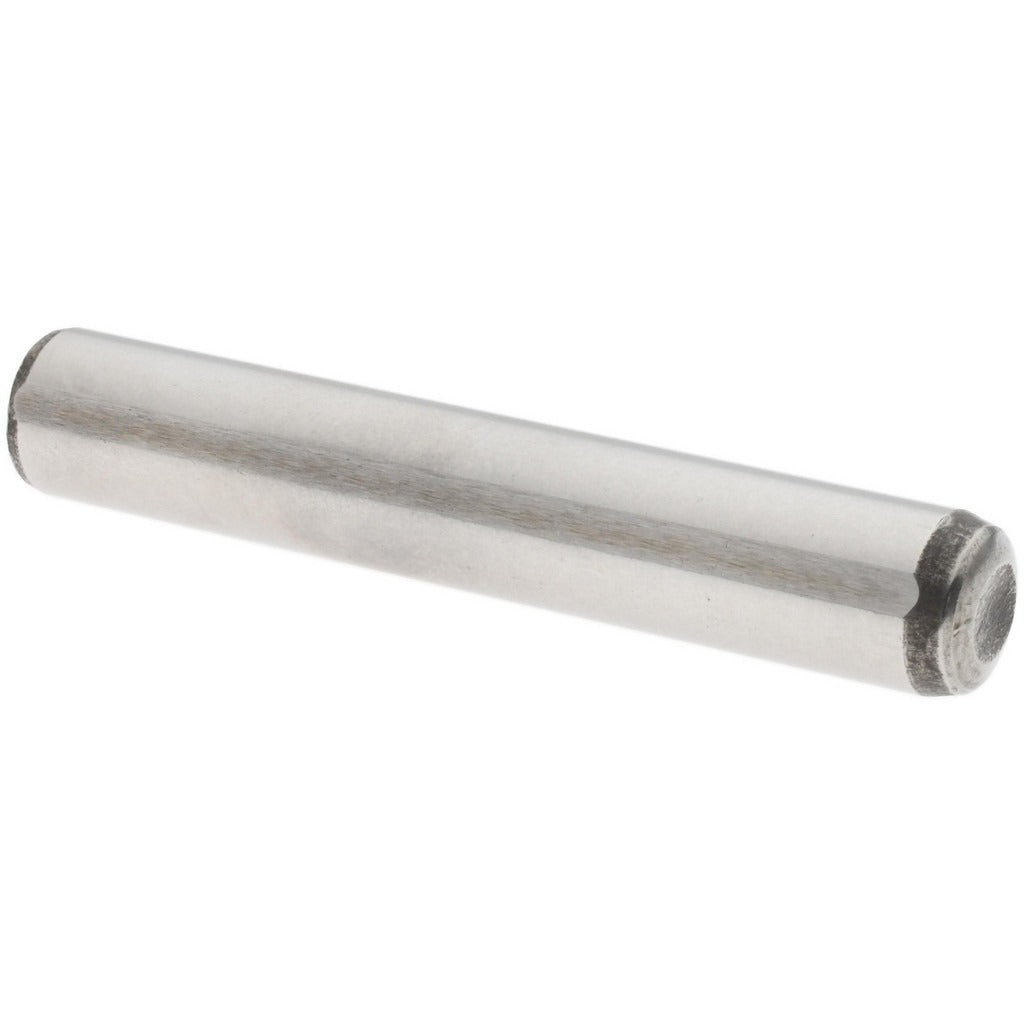

The VALUE COLLECTION 548386PS is a flat vent pull out dowel pin designed for precision locating and alignment applications in tooling, fixtures, and machined assemblies. Manufactured from alloy steel with a hardness rating of 57-63 HRC, this pin delivers the wear resistance and dimensional stability required in demanding production environments. The pin measures 10 mm in diameter and 60 mm in overall length, with one rounded end and one threaded end for pull-out extraction. It conforms to DIN 7979D standards. Machinists, toolmakers, and maintenance technicians working with precision fixtures and dies are the primary installers of this component.

This dowel pin is suited for use in jigs, dies, molds, and precision machined fixtures where repeatable alignment is critical. The flat vent feature allows trapped air and lubricant to escape during press-in installation, reducing hydraulic lock. The threaded end enables controlled extraction using a standard pull-out tool without damaging the bore or surrounding material. Typical applications include workholding fixtures, die sets, and machine tool assemblies in industrial and manufacturing settings.

Key Features

• Flat vent design allows air and fluid to escape during installation, preventing hydraulic lock
• One rounded end and one threaded end for tool-assisted extraction per DIN 7979D
• 57-63 HRC hardness for wear resistance in high-cycle tooling applications
• Alloy steel construction for strength and dimensional stability
• Conforms to DIN 7979D fastener standard for interchangeability
• 10 mm diameter x 60 mm length for common fixture and die applications

Compatibility

Designed as a DIN 7979D-compliant flat vent pull out dowel pin suitable for use in jigs, dies, molds, and precision machined assemblies requiring a 10 mm bore diameter.

Installation Notes

Installation is typically performed by machinists or toolmakers using a press or mallet and appropriate drift tools. Ensure the receiving bore is clean, deburred, and dimensioned to the correct tolerance before pressing the pin in place. Use the threaded end with a compatible pull-out tool for removal to avoid bore damage. Follow shop safety procedures and de-energize or lock out any machinery before servicing components containing dowel pins.
