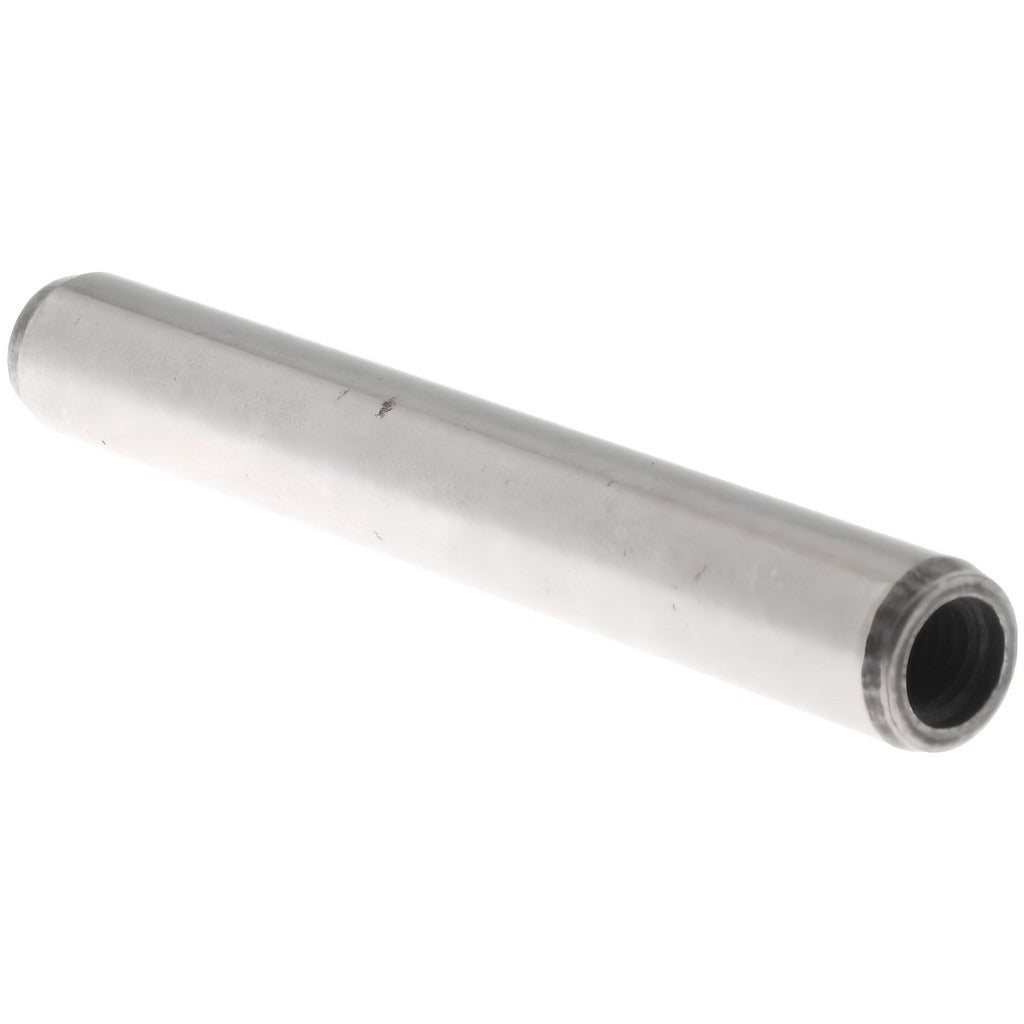

Value Collection 548337PS Dowel Pin 8x60mm Alloy Steel

Product Description

The VALUE COLLECTION 548337PS is a flat vent pull out dowel pin manufactured from alloy steel to DIN 7979D standards. This precision locating pin measures 8 mm in diameter and 60 mm in overall length, with one rounded end and one threaded end for pull-out retrieval. It is hardened to 57-63 HRC, making it suited for high-precision fixture, jig, and tooling applications where repeatable alignment and resistance to wear are required. Licensed machinists, tool and die makers, and maintenance technicians working with industrial machinery and fixtures are the primary installers.

This dowel pin is used in manufacturing and industrial maintenance settings where tight-tolerance component alignment is critical. The flat vent design allows trapped air and fluid to escape during press-fit installation, preventing hydraulic lock in blind holes. The threaded end enables controlled extraction without damaging the bore or surrounding workpiece. It is appropriate for use in precision machine assemblies, mold tooling, jigs, and fixtures across general manufacturing environments.

Key Features

• Flat vent design prevents hydraulic lock during press-fit into blind holes
• One rounded end and one threaded end for controlled pull-out extraction
• 57-63 HRC hardness provides high wear resistance and dimensional stability
• Manufactured to DIN 7979D standard for consistent tolerancing and interchangeability
• Alloy steel construction for strength in demanding fixture and tooling applications

Compatibility

Designed as an OEM-style replacement or standard-service dowel pin for industrial fixtures, jigs, molds, and machine assemblies requiring DIN 7979D flat vent pull out pins with an 8 mm diameter and 60 mm length.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or mallet with an appropriate driver. The receiving bore should be reamed to the specified DIN 7979D tolerance before installation. Disengage all machine power and relieve any hydraulic or pneumatic pressure before servicing the assembly. Use the threaded end with a compatible extraction tool to remove the pin without damaging the bore.
