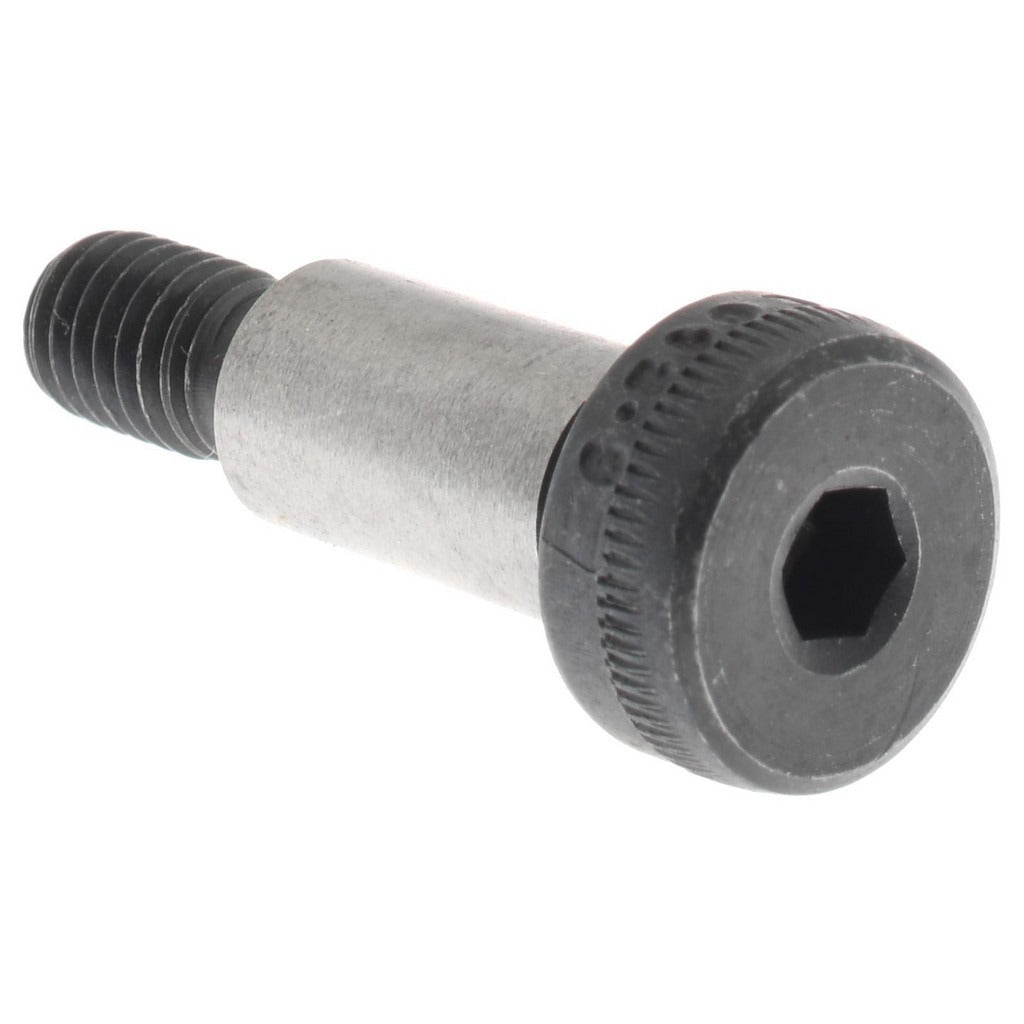

Value Collection 537110PS Shoulder Screw M6x1 Alloy Steel

Product Description

The VALUE COLLECTION 537110PS is a metric shoulder screw designed for precise mechanical assemblies requiring a controlled-diameter bearing surface. The shoulder measures 8 millimeters in diameter and 16 millimeters in length, providing a smooth, hardened shaft for pivoting linkages, cam followers, or guided components. Driven by a hex socket and threaded at M6x1, this screw is manufactured from alloy steel at material grade 12.9, indicating high tensile strength suitable for demanding fastening applications. The uncoated finish leaves the surface ready for use as-received. Machinists, maintenance technicians, and assembly professionals install this type of fastener in precision fixtures, jigs, and industrial equipment.

This shoulder screw is suited for light industrial and precision mechanical applications where an accurate shoulder diameter is required to serve as a bearing, pivot, or spacer surface. It is commonly used in fixture plates, robotic assemblies, conveyor linkages, and machine tool setups. The M6x1 thread engages a tapped hole in the mating component, while the shoulder passes through a clearance bore to control alignment and movement. The hex socket drive allows installation with a standard hex key in close-clearance environments.

Key Features

• 8 millimeter shoulder diameter with 16 millimeter shoulder length for precise radial and axial positioning
• M6x1 metric thread for compatibility with standard metric tapped holes
• Grade 12.9 alloy steel construction for high tensile and shear strength
• Hex socket drive allows torque application in confined spaces
• Uncoated finish suitable for use as-received or with customer-applied coatings
• Meets ASME/ANSI B18.3.3.M, BS 4168, and ISO 7379 standards

Compatibility

Designed as an OEM-style replacement or standard-stock shoulder screw for precision mechanical assemblies requiring an 8 millimeter shoulder diameter and M6x1 thread engagement per ASME/ANSI B18.3.3.M, BS 4168, and ISO 7379 specifications.

Installation Notes

Installation is performed by maintenance technicians or machinists using a hex key sized to the socket drive. De-energize and lock out any equipment before fastener installation or replacement. Thread the screw into a properly tapped M6x1 hole until the shoulder seats flush against the mating surface. Do not exceed the design torque capacity of a grade 12.9 M6 fastener as defined by the applicable engineering specification for the assembly.
