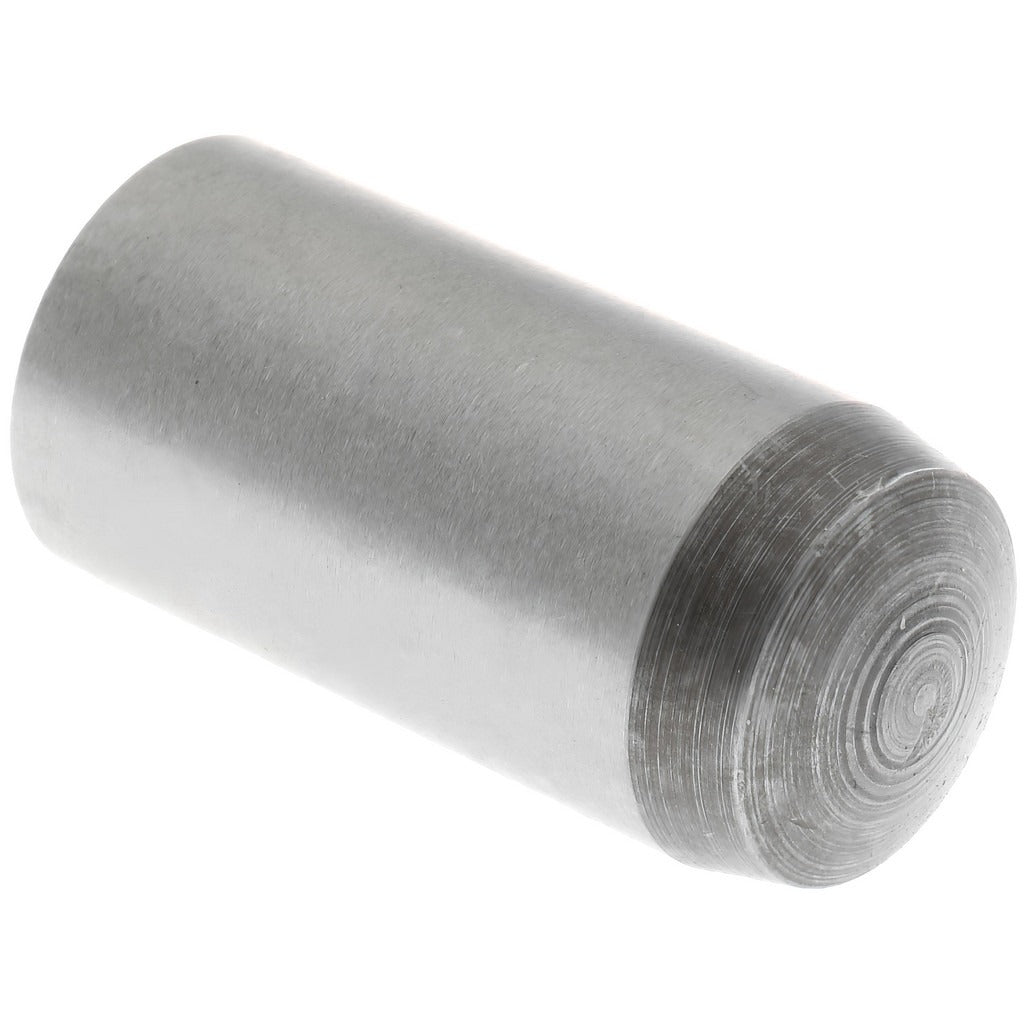

Value Collection 536539PR Dowel Pin 10x22mm Alloy Grade 8

Product Description

The VALUE COLLECTION 536539PR is a precision dowel pin manufactured from alloy steel to Grade 8 material standards. At 10 mm in diameter and 22 mm in overall length, this pin is produced to DIN 6325 and ISO 8734 dimensional tolerances, making it suited for applications that demand tight positional accuracy. The bright, uncoated finish is standard for this pin type. Rounded end geometry allows controlled insertion into blind or through holes without chamfer damage. Machinists, toolmakers, and assembly technicians use precision dowel pins like this one to align fixture components, dies, molds, and machine parts where repeatable positioning is critical.

This dowel pin fits industrial assembly, tooling, fixture building, and general precision machining applications. The DIN 6325 and ISO 8734 standards define close h6 shaft tolerances on diameter, making the pin interchangeable with any compliant hole prepared to the same standard. Typical use cases include aligning steel or cast-iron plates in jigs and fixtures, locating die shoe halves, and securing repeatable part registration in production tooling. The Grade 8 alloy steel construction provides the hardness and shear strength needed in high-load alignment roles.

Key Features

• 10 mm diameter and 22 mm length per DIN 6325 and ISO 8734 standards
• Grade 8 alloy steel for high hardness and shear resistance
• Rounded end type for smooth, controlled insertion
• Bright uncoated finish for consistent surface condition
• Sold individually; minimum order quantity of 10 units

Compatibility

Designed for use in any application requiring a DIN 6325 or ISO 8734 compliant precision dowel pin with a 10 mm nominal diameter and 22 mm length.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed holes using an arbor press or soft-faced mallet. Power down and de-energize any machinery before servicing fixtures or tooling that contain dowel pins. Hole preparation to the correct tolerance class is critical — an undersized or out-of-round hole will prevent proper seating and reduce alignment accuracy. Do not hammer pins directly with a steel hammer face, as this can damage the pin end and distort the hole entry.
