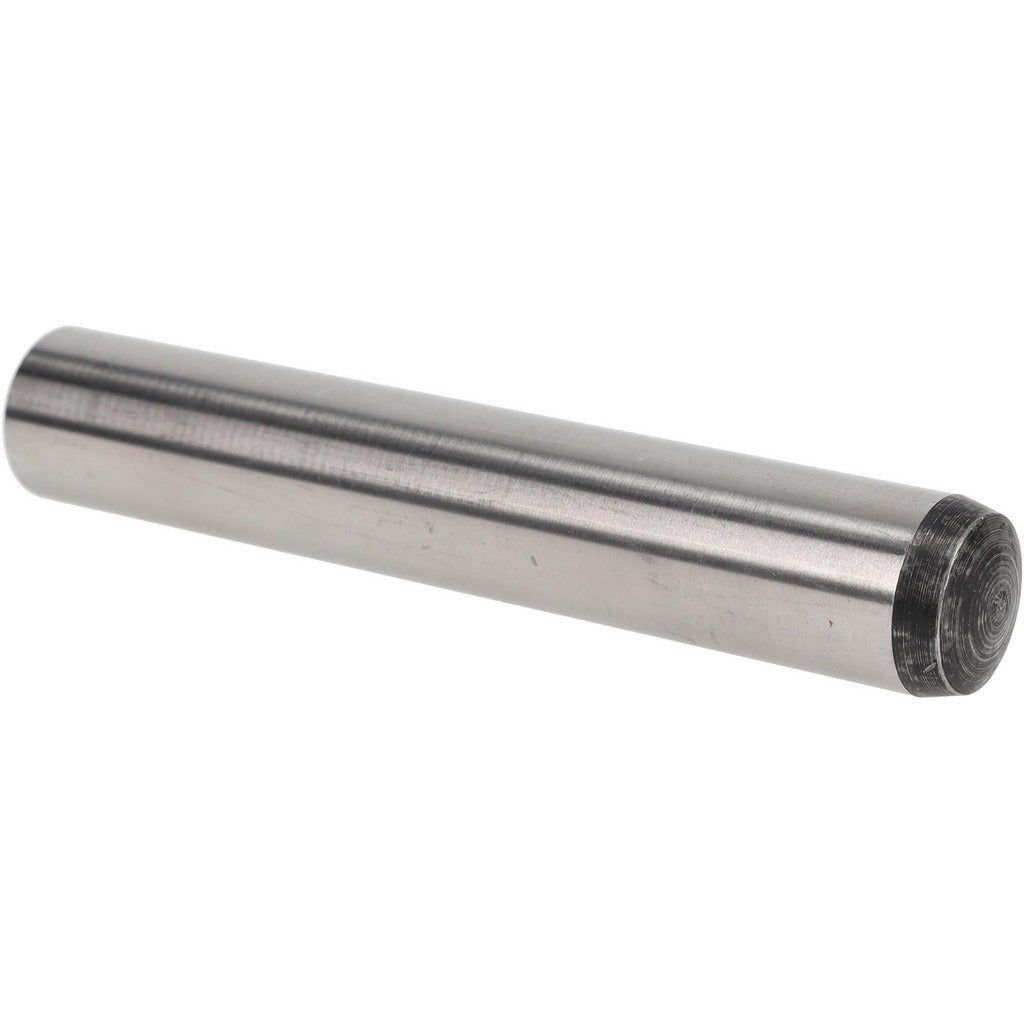

Value Collection 536384BR Dowel Pin 25x150mm Alloy Steel

Product Description

The VALUE COLLECTION 536384BR is a standard pull out dowel pin manufactured from alloy steel to DIN 6325 specifications. This precision locating pin measures 25 mm in diameter and 150 mm in overall length, with a rounded end type for guided insertion into mating bores. It carries a hardness rating of 58-62 HRC and a double-shear breaking strength of 232,000 pounds-force, making it suitable for demanding alignment and positioning applications in industrial tooling, fixtures, and machine assemblies. Machinists, toolmakers, and maintenance technicians install these pins to maintain accurate part alignment under load.

Standard pull out dowel pins of this type are used in production fixtures, jigs, mold bases, and heavy machine frames where repeated disassembly and reassembly is required. The pull out head design allows the pin to be extracted without a press, which simplifies maintenance cycles in high-use fixturing. This size, 25 mm diameter by 150 mm length, is common in medium-to-heavy industrial tooling applications where close-tolerance bore alignment is critical.

Key Features

• DIN 6325 standard compliance ensures interchangeability with other DIN 6325 pull out dowel pins
• Alloy steel construction with 58-62 HRC hardness for wear resistance in high-cycle applications
• Double-shear breaking strength of 232,000 pounds-force supports heavy shear loads
• Rounded end type guides pin entry into bores, reducing the risk of bore damage on installation
• Pull out head style allows removal without a hydraulic or arbor press

Compatibility

Designed as an OEM-style replacement or direct-fit component for applications requiring DIN 6325 standard pull out dowel pins with a 25 mm diameter and 150 mm length.

Installation Notes

Installation and removal of industrial dowel pins is typically performed by machinists or maintenance technicians familiar with close-tolerance fit work. Before removing or installing this pin, ensure all associated machine energy sources are locked out and tagged per OSHA lockout/tagout procedures. Use appropriate pin drivers, a press, or the pull out extraction feature to seat and remove the pin without damaging the bore. Bore surfaces should be clean, degreased or lightly lubricated as required by the application, and inspected for wear or damage before reinstalling a dowel pin.
