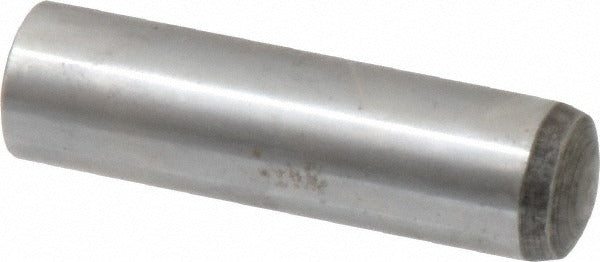

Value Collection 536258BR Dowel Pin 16x60mm Alloy Steel

Product Description

The VALUE COLLECTION 536258BR is a standard pull out dowel pin manufactured from alloy steel to DIN 6325 specifications. This ground-precision pin measures 16 mm in diameter and 60 mm in overall length, with a rounded end profile for guided insertion into mating bores. It carries a hardness rating of 58-62 HRC, making it well suited for high-load positioning and alignment applications in machined assemblies. The double-shear breaking strength is rated at 94,900 Newtons, indicating substantial load-bearing capacity. Machinists, toolmakers, and maintenance technicians install this pin in fixtures, jigs, dies, and precision machine components requiring repeatable part location.

This dowel pin is used in industrial manufacturing environments where tight-tolerance alignment is required between mated components. Typical applications include fixture plates, die sets, mold assemblies, and machine tool bases. The DIN 6325 standard governs the dimensional tolerancing and surface finish, ensuring interchangeability with other compliant components in the same standard. It is sold individually but carries a minimum order quantity of 10 units per order. This pin is appropriate for both original equipment assembly and maintenance replacement in precision mechanical systems.

Key Features

• DIN 6325 standard compliance ensures dimensional interchangeability with other compliant pins and bores
• 58-62 HRC hardness rating provides resistance to wear and deformation under repeated load cycles
• Rounded end type facilitates entry into mating bores without requiring a chamfered lead-in
• Double-shear breaking strength of 94,900 Newtons supports high-load alignment duties
• Alloy steel construction delivers hardness and toughness suitable for industrial tooling environments

Compatibility

Designed as an OEM-style replacement or direct-use dowel pin for fixtures, jigs, dies, and precision assemblies requiring a DIN 6325 compliant 16 mm diameter pull out pin with a 60 mm working length.

Installation Notes

Installation is typically performed by machinists or toolmakers using an arbor press or appropriate driving tool to avoid damage to the pin or bore surface. Ensure the receiving bore is reamed to the correct DIN 6325 tolerance before pressing the pin into position. Remove all chips and contaminants from the bore prior to installation. The pull out end feature allows removal with a standard puller tool without requiring bore access from the reverse side.
