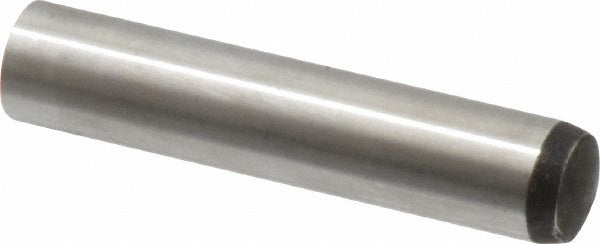

Value Collection 536208PR Dowel Pin 12x60mm Alloy Steel

Product Description

The VALUE COLLECTION 536208PR is a standard pull out dowel pin manufactured from alloy steel and hardened to 58-62 HRC for demanding precision-location applications. At 12 mm in diameter and 60 mm in overall length, this pin meets DIN 6325 dimensional standards, making it a direct fit wherever that fastener specification is called out. The rounded end type aids in guided insertion during assembly or fixture alignment. With a double-shear breaking strength of 53,400 Newtons, this pin is built to handle the lateral loads common in jig, fixture, and machine-component alignment work. Machinists, tool-and-die makers, and maintenance technicians are the typical end users.

This dowel pin is suited for precision alignment and locating tasks in industrial and manufacturing environments. Common applications include aligning die sets, machine tool fixtures, mold halves, and structural weldment components where tight positional tolerances must be maintained across repeated assembly and disassembly cycles. The pull-out design allows for controlled removal using a standard extraction tool or slide hammer puller without damaging the bore or mating component. Sold individually, with a minimum order quantity of 25 units.

Key Features

• DIN 6325 fastener standard for interchangeable precision fitment
• 12 mm diameter and 60 mm overall length
• Alloy steel construction hardened to 58-62 HRC for wear and shear resistance
• Double-shear breaking strength of 53,400 Newtons
• Rounded end type for guided, damage-free insertion
• Pull-out feature design enables controlled removal with standard extraction tools

Compatibility

Designed as an OEM-style replacement or new-installation dowel pin for applications specifying DIN 6325 standard pull out dowel pins with a 12 mm diameter and 60 mm length.

Installation Notes

Installation and removal of hardened dowel pins should be performed by a qualified machinist or maintenance technician familiar with precision-location fastener practices. Always confirm bore diameter and finish tolerance match the pin diameter before pressing or driving the pin to avoid bore damage. Use appropriate press or extraction tooling rated for the application load — never use an improvised striking method on hardened components. Shut down and de-energize any machine or fixture before servicing locating pins.
