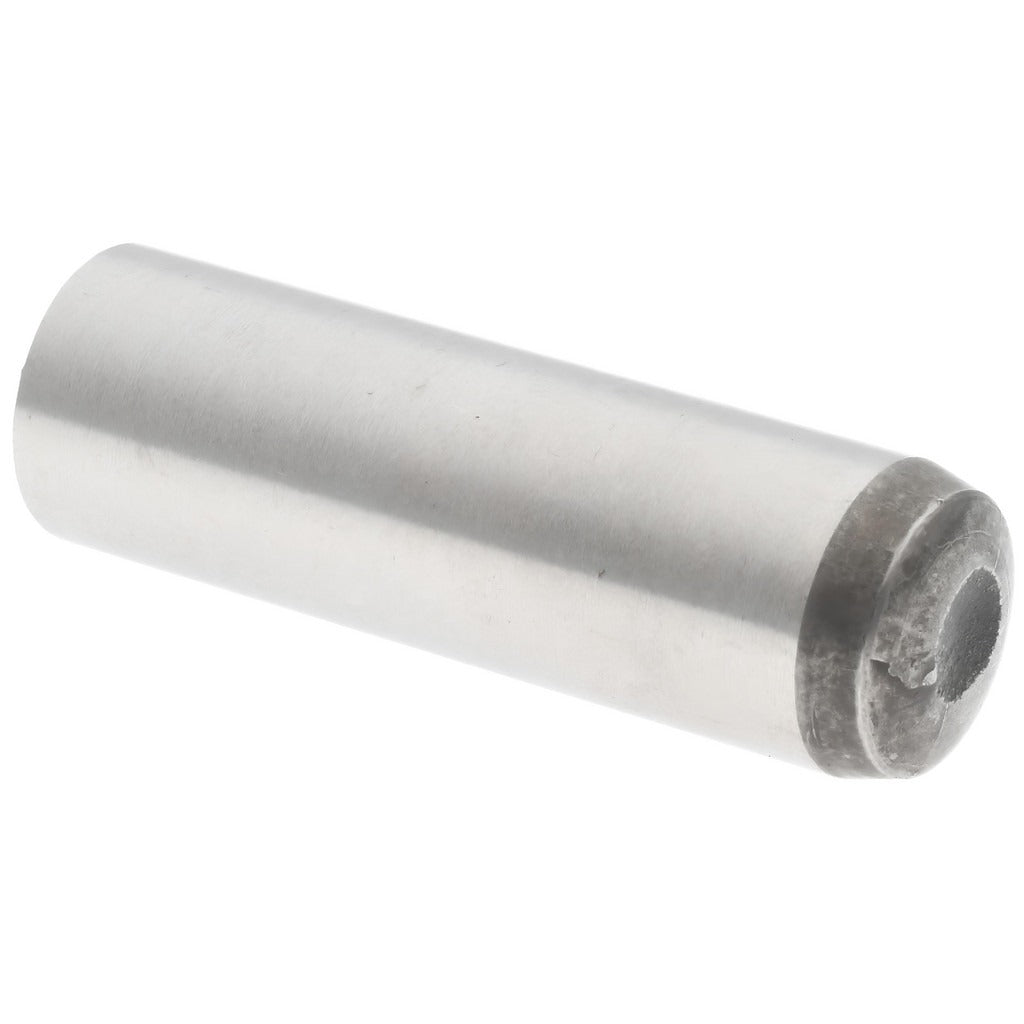

Value Collection 536200PR Dowel Pin 12x40mm Alloy Steel Din 6325

Product Description

The VALUE COLLECTION 536200PR is a standard pull-out dowel pin manufactured from alloy steel to DIN 6325 tolerances. The pin measures 12 mm in diameter and 40 mm in overall length with a rounded end profile. It carries a Rockwell hardness rating of 58-62 HRC, making it suited for precision location and alignment work where tight tolerances and resistance to deformation are required. Machinists, tool-and-die technicians, and maintenance professionals install these pins to accurately align mating components such as dies, fixtures, jigs, and machine frames during assembly and teardown cycles.

This dowel pin is designed for applications where controlled disassembly is a routine requirement. The pull-out geometry allows removal with standard extraction tools without damaging the bore or the mating part. Typical use cases include die sets, modular fixtures, and production tooling where components are frequently indexed and repositioned. The DIN 6325 standard governs dimensional and tolerance requirements, making this pin compatible with metric precision-fit applications common in manufacturing and industrial maintenance environments.

Key Features

• DIN 6325 standard for metric precision fit and interchangeability
• 58-62 HRC hardness for wear resistance and dimensional stability under load
• Rounded end profile for guided entry into close-tolerance bores
• Double-shear breaking strength rated at 53,400 force units for structural reliability
• Pull-out design enables controlled removal without bore damage
• Alloy steel construction for durability in industrial tooling environments

Compatibility

Designed as an OEM-style replacement or new-installation component for metric precision-location applications conforming to DIN 6325 dimensional standards in dies, fixtures, and modular tooling assemblies.

Installation Notes

Installation and removal should be performed by qualified machinists or maintenance technicians familiar with precision-fit fastener practices. Ensure the receiving bore is clean, properly sized to DIN 6325 tolerances, and free of burrs before pressing the pin into place. Use an arbor press or appropriate driving tool to avoid side-loading or impact damage to the pin or bore. Always de-energize and lock out any machinery before installing or extracting dowel pins from active tooling or fixture assemblies.
