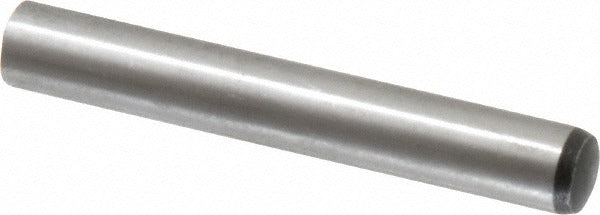

Value Collection 536168PR Dowel Pin 10x70mm Alloy Steel Din 6325

Product Description

The VALUE COLLECTION 536168PR is a standard pull out dowel pin manufactured from alloy steel and hardened to 58-62 HRC for reliable performance in precision alignment and locating applications. The pin measures 10 mm in diameter and 70 mm in overall length with a rounded end profile that eases insertion into bored holes. It meets DIN 6325 dimensional and tolerance standards, making it a direct fit for applications requiring certified fastener geometry. A double-shear breaking strength of 37,100 units confirms its capacity to handle significant shear loads in tooling, fixtures, and machine assemblies.

This dowel pin is suited for use in production tooling, jigs, fixtures, molds, and machine component alignment in industrial and manufacturing environments. Its DIN 6325 compliance makes it appropriate for both OEM assembly and maintenance replacement scenarios where standardized pin geometry is required. The hardened alloy steel construction is typical for applications demanding wear resistance and dimensional stability under repeated cycling or high-load conditions. Machinists, toolmakers, and industrial maintenance technicians are the primary installers.

Key Features

• DIN 6325 standard compliance for consistent fit in precision bored holes
• 58-62 HRC hardness for wear resistance and dimensional stability under load
• Rounded end profile for easier insertion and reduced chamfer requirements
• Double-shear breaking strength of 37,100 for high shear-load applications
• Alloy steel construction suited for tooling, fixtures, and machine alignment

Compatibility

Designed as a DIN 6325 standard pull out dowel pin for use in jigs, fixtures, molds, and precision machine assemblies requiring a 10 mm diameter locating pin.

Installation Notes

Installation is typically performed by machinists or toolmakers using an arbor press or pin driver to seat the pin into a reamed hole sized to DIN 6325 tolerance specifications. Always ensure the receiving hole is clean and properly reamed before pressing to avoid galling or dimensional damage. Remove all load and de-energize any associated equipment before servicing or replacing locating pins in active fixtures or assemblies. Do not hammer pins directly without a proper driver to avoid deforming the rounded end or damaging the bore.
