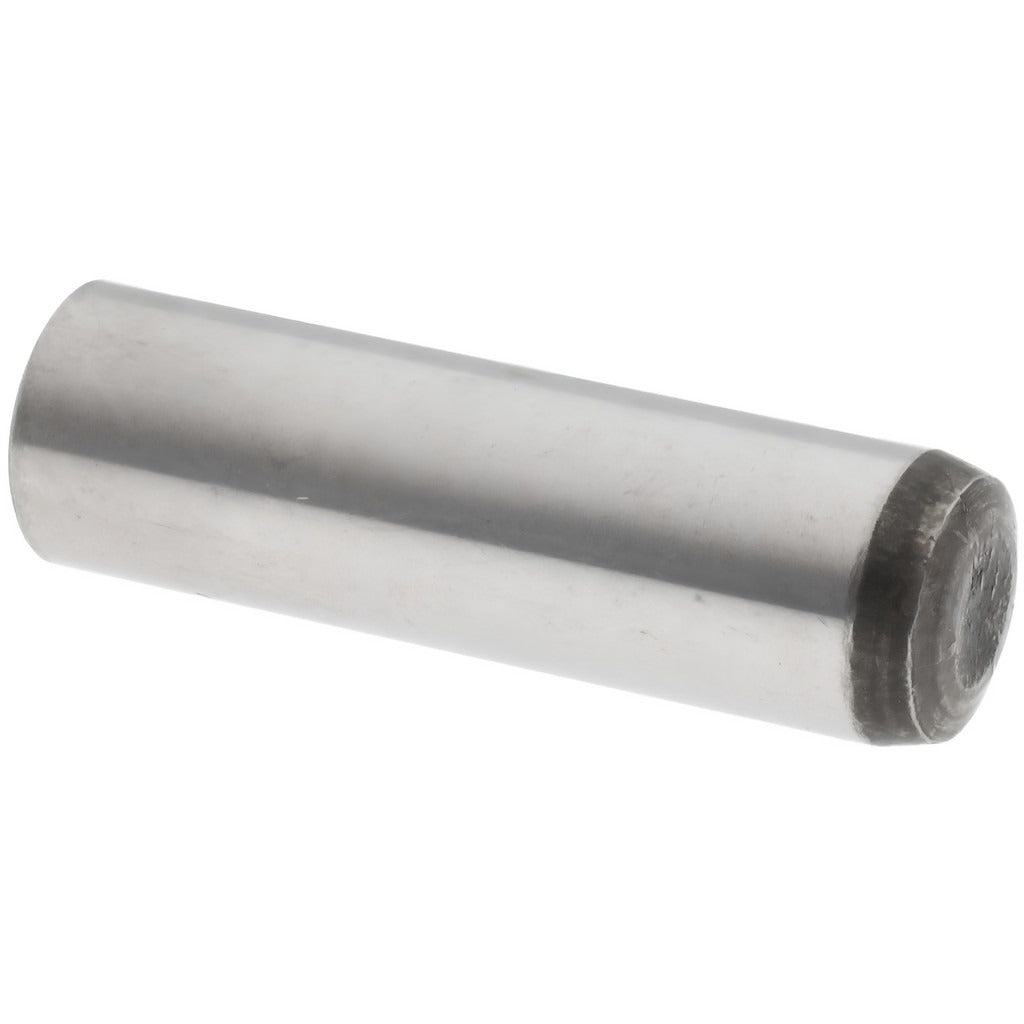

Value Collection 536154PR Dowel Pin 10x35mm Alloy Steel

Product Description

The VALUE COLLECTION 536154PR is a standard dowel pin manufactured from alloy steel to DIN 6325 specifications. It measures 10 mm in diameter and 35 mm in overall length, with rounded ends and a black oxide finish. The pin is hardened to 58-62 HRC, giving it the wear resistance needed for precision locating and alignment applications. A double-shear breaking strength of 37,100 pounds makes it suitable for demanding mechanical assemblies. Machinists, tool and die makers, and maintenance professionals install these pins to align mating components, fixture tooling, and machine assemblies where consistent, repeatable positioning is required.

This dowel pin is used in industrial and manufacturing environments for component alignment, jig and fixture construction, and machine assembly. Its DIN 6325 compliance makes it a direct fit wherever a standard metric ground dowel pin is called out in engineering drawings. The black oxide finish provides mild corrosion resistance during storage and handling. Suitable for use in production tooling, mold bases, press fixtures, and general precision mechanical assemblies across a wide range of industries.

Key Features

• DIN 6325 standard metric ground dowel pin for precision alignment applications
• Alloy steel construction hardened to 58-62 HRC for high wear resistance
• Double-shear breaking strength of 37,100 pounds for load-bearing reliability
• Rounded ends for easier insertion into close-tolerance holes
• Black oxide finish for mild corrosion resistance during handling and storage
• 10 mm diameter by 35 mm length for a widely specified metric size

Compatibility

Designed as an OEM-style replacement or standard-stock metric dowel pin for any application calling out a DIN 6325 ground dowel pin at 10 mm diameter and 35 mm length.

Installation Notes

Dowel pins are typically pressed or driven into reamed holes by machinists or maintenance mechanics using an arbor press or soft-face mallet. Holes should be finish-reamed to the appropriate DIN 6325 tolerance before installation. Always de-burr and clean holes prior to pressing. Do not force a pin into an undersized or unfinished hole, as this can cause galling or component damage.
