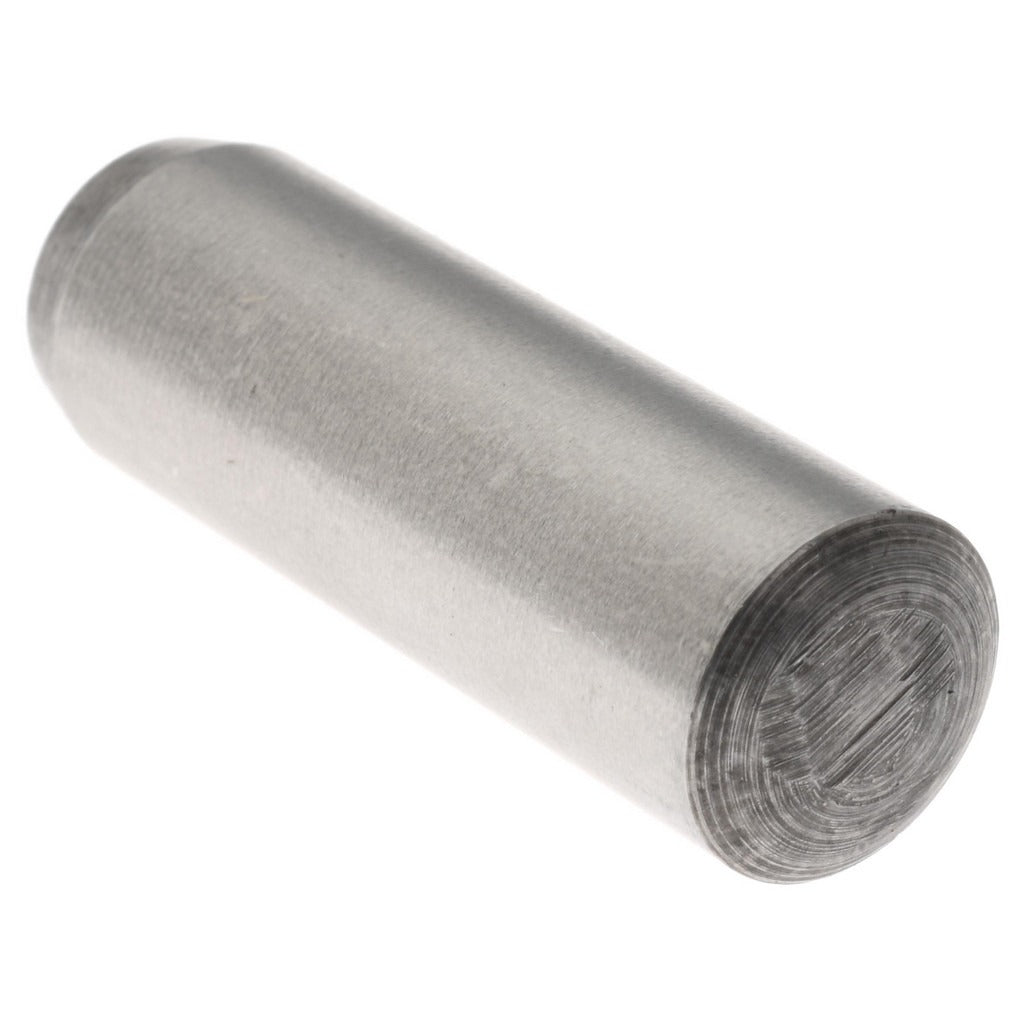

Value Collection 536153PR Precision Dowel Pin 10x32mm Grade 8

Product Description

The VALUE COLLECTION 536153PR is a precision dowel pin manufactured from Grade 8 alloy steel with a bright uncoated finish. At 10 mm in diameter and 32 mm in overall length, this pin provides tight dimensional tolerances required for accurate part alignment and location in mechanical assemblies. It conforms to DIN 6325 and ISO 8734 fastener standards, making it a recognized choice for industrial, tooling, and machining applications. The rounded end type allows for guided insertion into drilled and reamed holes. Licensed trades and machinists working with precision fixtures, jigs, dies, and assemblies rely on this standard for repeatable positional accuracy.

This dowel pin is suited for use in precision tooling fixtures, machine components, die sets, and structural alignment applications where exact hole-to-hole registration is required. The DIN 6325 and ISO 8734 compliance makes it interchangeable with other pins manufactured to the same international standards. It is appropriate for both light and heavy industrial assembly environments where alloy steel strength and dimensional consistency are required. Sold individually per package with a minimum order quantity of 10 units.

Key Features

• Conforms to DIN 6325 and ISO 8734 international fastener standards for dimensional interchangeability
• Grade 8 alloy steel construction provides high shear strength and hardness for demanding applications
• Bright uncoated finish maintains close tolerances without additional coating buildup
• Rounded end type facilitates guided insertion into reamed or precision-drilled holes
• 10 mm diameter by 32 mm length suits a wide range of standard tooling and fixture applications

Compatibility

Designed as a standard precision dowel pin conforming to DIN 6325 and ISO 8734, compatible with any application calling for a 10 mm diameter by 32 mm length precision pin to those specifications.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed holes by machinists or tool and die professionals. Power down and de-energize all associated machinery before installation or removal. Holes should be finish-reamed to the appropriate tolerance class for the pin diameter per DIN or ISO specification before installation. Avoid hammering pins into undersized holes, as this can damage the pin, bore, or mating component.
