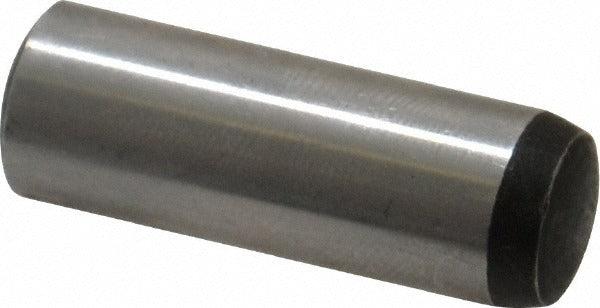

Value Collection 536152PR Precision Dowel Pin 10x30mm Grade 8

Product Description

The VALUE COLLECTION 536152PR is a precision dowel pin manufactured from Grade 8 alloy steel with a bright, uncoated finish. The pin measures 10 mm in diameter and 30 mm in overall length, with rounded ends conforming to DIN 6325 and ISO 8734 standards. These standards define tight dimensional tolerances essential for accurate locating, alignment, and positioning of mating components in machined assemblies. Machinists, tool-and-die makers, and mechanical assemblers use precision dowel pins like this one to maintain repeatable part alignment in jigs, fixtures, molds, and structural assemblies where hole-to-hole registration is critical.

This dowel pin is suited for industrial, commercial, and production machining environments. It is commonly pressed or driven into reamed holes in metal workpieces, fixtures, and tooling plates to align components with minimal positional variation. The Grade 8 alloy steel construction provides high shear strength and hardness, making it appropriate for high-load applications where softer pins would deform or shift. Rounded ends allow for guided entry into precision-reamed bores without damage to the bore surface. This item is sold individually with a minimum order quantity of 10 units.

Key Features

• Grade 8 alloy steel construction delivers high shear strength for demanding load-bearing applications
• Meets DIN 6325 and ISO 8734 standards for dimensional and tolerance accuracy
• Bright, uncoated finish maintains close tolerances without coating buildup affecting fit
• Rounded end type allows guided entry into precision-reamed holes
• 10 mm diameter by 30 mm overall length suits a wide range of fixture and tooling applications

Compatibility

Designed as a DIN 6325 and ISO 8734 compliant precision dowel pin for use in machined metal assemblies, tooling fixtures, jigs, molds, and alignment applications requiring a 10 mm reamed bore.

Installation Notes

Installation is performed by machinists or mechanical assemblers using a press or mallet with a suitable driver. The receiving bore should be precision-reamed to the tolerance class specified by DIN 6325 or ISO 8734 to ensure proper interference or transition fit. Disengage and de-energize all equipment before working on assemblies containing these pins. Do not use pin punches that could damage the rounded end geometry or mar the bore surface during removal.
