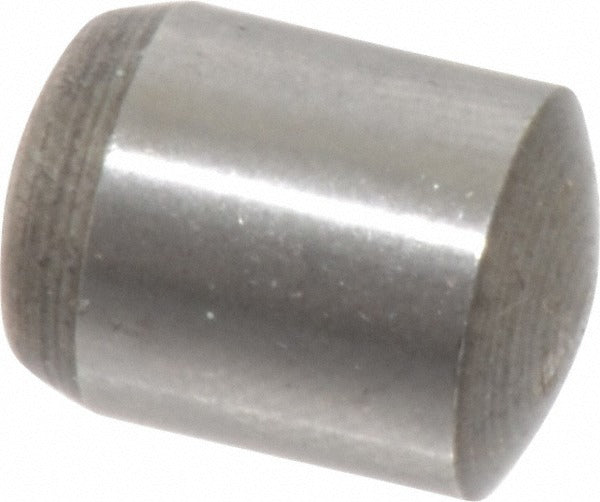

Value Collection 536139PR Precision Dowel Pin 10x14mm Grade 8

Product Description

The VALUE COLLECTION 536139PR is a precision dowel pin manufactured from Grade 8 alloy steel with a bright, uncoated finish. At 10 mm in diameter and 14 mm in overall length, this pin is produced to DIN 6325 and ISO 8734 standards, ensuring tight dimensional tolerances and consistent hardness throughout. The rounded end type allows for controlled insertion into close-tolerance bored holes. Precision dowel pins of this type are used to locate, align, and retain machine components with repeatable accuracy. Machinists, tool-and-die makers, and mechanical assembly technicians are the primary installers in manufacturing and industrial maintenance environments.

This dowel pin is suited for use in precision jig and fixture construction, mold alignment, machine tool assembly, and general industrial component locating applications. Its DIN 6325 and ISO 8734 compliance makes it compatible with internationally standardized tooling and fixturing systems. The Grade 8 alloy steel construction supports high-load, high-shear applications where softer or lower-grade pins would deform or fail. Sold individually, with a minimum order quantity of 10 pieces per order.

Key Features

• DIN 6325 and ISO 8734 compliant — meets international precision pin standards
• Grade 8 alloy steel construction for high shear strength and hardness
• 10 mm diameter x 14 mm length with tight dimensional tolerances
• Rounded end type for controlled, damage-free insertion
• Bright, uncoated finish — no coating variation to affect fit in close-tolerance bores
• Minimum order quantity of 10 pieces ensures job-lot availability

Compatibility

Designed as an OEM-style replacement or new-installation precision locating pin for use in any jig, fixture, mold, or machine assembly requiring a DIN 6325 or ISO 8734 compliant 10 mm precision dowel pin.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed or ground holes by machinists or mechanical assembly technicians using an arbor press or dead-blow mallet — never a standard steel hammer, which can damage the pin or bore. Confirm bore diameter and surface finish meet DIN 6325 or ISO 8734 tolerances before installation. De-energize and lock out all machinery before performing any alignment or component assembly work involving dowel pins. Interference fit should be verified against application engineering requirements before pressing pins permanently into position.
