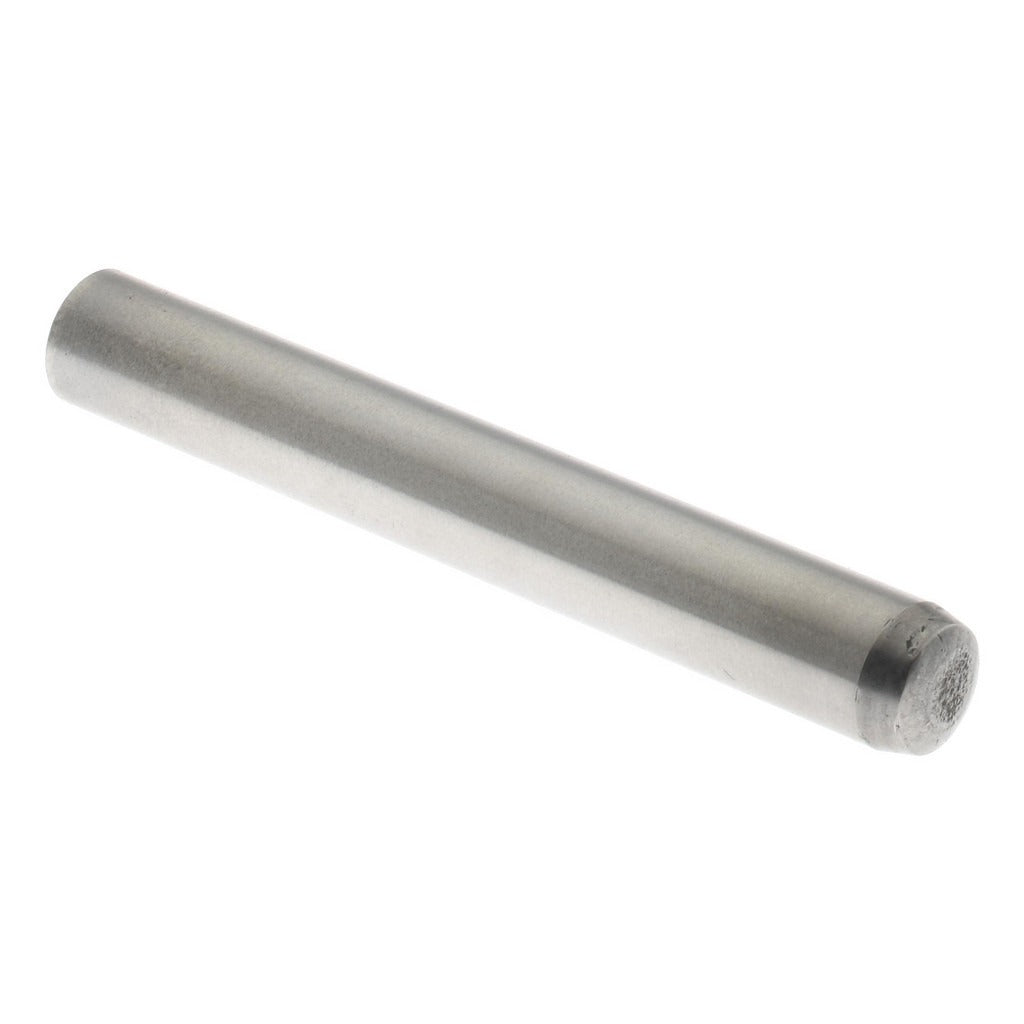

Value Collection 536090PR Dowel Pin 6mm X 45mm Alloy Steel

Product Description

The VALUE COLLECTION 536090PR is a standard pull-out dowel pin manufactured from alloy steel and hardened to 58-62 HRC for reliable, repeatable precision alignment in machined assemblies. At 6 mm in diameter and 45 mm in overall length, this pin meets DIN 6325 specifications and features a rounded end type for guided insertion into close-tolerance bored holes. With a double-shear breaking strength of 13,300 newtons, it is suited for demanding locating and alignment applications where consistent pin retention and shear resistance are required. Machinists, toolmakers, and maintenance technicians install these pins in jigs, fixtures, dies, and precision-machined components.

This dowel pin is intended for use in precision tooling, die sets, machine fixtures, and mechanical assemblies where accurate and repeatable part location is critical. The DIN 6325 standard defines the dimensional and hardness tolerances that make this pin interchangeable with other compliant components in production and maintenance environments. Typical installations include fixture plates, mold bases, machine tool components, and assembly fixtures in industrial manufacturing settings.

Key Features

• DIN 6325 standard compliance ensures dimensional interchangeability
• Alloy steel construction hardened to 58-62 HRC for wear resistance and strength
• Double-shear breaking strength of 13,300 newtons for demanding load applications
• Rounded end type for guided, damage-free insertion into precision-bored holes
• 6 mm diameter and 45 mm overall length for standard fixture and tooling applications

Compatibility

Designed as a DIN 6325 compliant standard pull-out dowel pin suitable for use in precision jigs, fixtures, dies, and machined assemblies requiring a 6 mm nominal diameter locating pin.

Installation Notes

Installation of dowel pins should be performed by qualified machinists or toolmakers using a press or mallet with a suitable driver to avoid damaging the pin or bore. Ensure the receiving hole is bored and reamed to the correct DIN 6325 tolerance before pressing the pin into position. Power down and de-energize any associated equipment before performing alignment or pin installation work. Inspect the bore for burrs or contamination prior to installation to prevent galling or misalignment.
