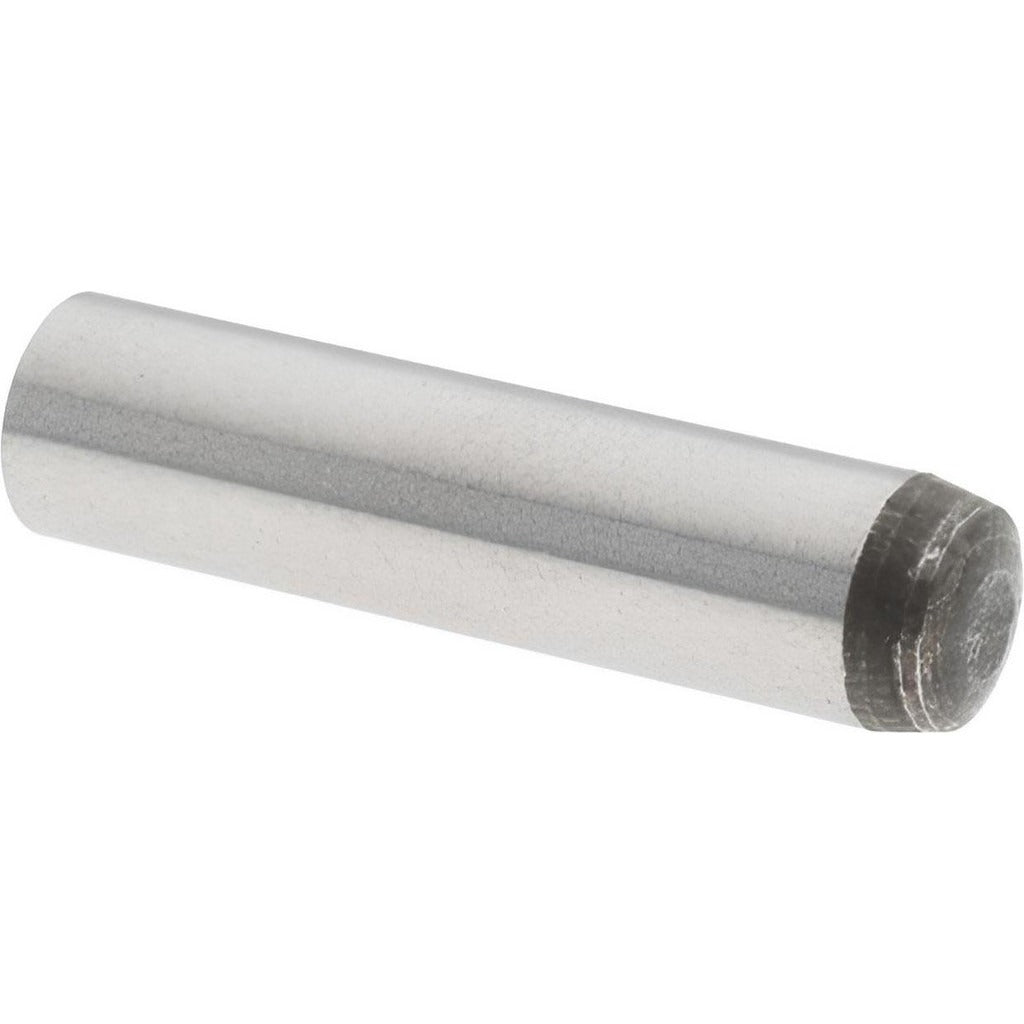

Value Collection 536082PR Dowel Pin 6mm X 25mm Alloy Steel

Product Description

The VALUE COLLECTION 536082PR is a standard pull-out dowel pin manufactured from alloy steel to DIN 6325 specifications. It measures 6 mm in diameter and 25 mm in overall length, with a rounded end profile for guided insertion into precision-bored holes. The pin is through-hardened to 58-62 HRC, providing the resistance to deformation required in high-load fixture and tooling applications. Double-shear breaking strength is rated at 13,300 Newtons, making it suitable for demanding alignment and locating tasks. Machinists, tool-and-die makers, and maintenance technicians working with jigs, fixtures, and precision assemblies typically install this component.

This pin is used in precision alignment and locating applications across manufacturing, tooling, and mechanical assembly environments. It is appropriate for use in jig plates, fixture bodies, die sets, and machine components where repeatable positional accuracy is required. The pull-out style designation indicates it is intended for applications where the pin must be removed and reinserted during normal operation or maintenance cycles. It is sold individually but requires a minimum order quantity of 100 units per transaction.

Key Features

• DIN 6325 standard ensures dimensional conformance with metric precision tooling
• Alloy steel construction hardened to 58-62 HRC for wear and deformation resistance
• Rounded end profile facilitates alignment and guided insertion
• 13,300 N double-shear breaking strength rated for high-load locating applications
• Pull-out design supports frequent removal and reinstallation cycles

Compatibility

Designed as a DIN 6325 standard metric pull-out dowel pin suitable for use in precision jigs, fixtures, die sets, and machine assemblies requiring a 6 mm nominal diameter locating pin.

Installation Notes

Installation is typically performed by machinists or tool-and-die technicians using a pin press or arbor press fitted with appropriate tooling to avoid damaging the pin or bore. The receiving hole should be finish-reamed to the tolerance specified by DIN 6325 for proper interference or slip fit. Deburr and clean all mating surfaces before insertion. When removing pull-out pins, use a dedicated pin extractor or drift punch sized to avoid bore damage.
